Hi kwag and others...

Last night I ran a couple of tests with bitrate viewer...
I used the file size prediction clip from Frequency, which I want to put on one 80 min. CD-R. I used the new GOP structure and Blockbuster 0.6 together w/ FluxSmooth. I resized it with Avisynth Bilinear resize to the resolution 704x576 (PAL). I also masked the borders in TMPGEnc.

Sample #1 :
The first sample I did with the old KVCDx2 704x576 Template with the Default Matrix using the new GOP of 1,12,2,1,24 and I set the CQ Level to 57...

File Came Out At : 11,391 KB

Sample#2 :
The second sample I did with the KVCDx2 PLUS Template for PAL using KVCD Matrix together with the new GOP, and CQ_VBR. I had to lower the CQ_VBR level to 5,98 to get the same size...

File Came Out At : 11,374 KB


Now here comes the thing I don't understand... Viewed w/ WMP I already saw that the KVCDx2PLUS Template was of less quality than the first sample. Viewed with bitrate viewer the Average Bitrate was 891 for both samples. But... Sample #1 had an average Q-Level of 5.28 , Sample#2 had one of 6.55 ...

Now that's a hell of a lot difference...
Did I do something wrong??
__________________
j3llyG0053
Reply With Quote
Someday, 12:01 PM
admin's Avatar
Site Staff / Ad Manager

Join Date: Dec 2002
Posts: 42
Thanks: ∞
Thanked 42 Times in 42 Posts
  #2
12-24-2002, 11:14 AM
kwag kwag is offline
Free Member

Join Date: Apr 2002
Location: Puerto Rico, USA
Posts: 13,537
Thanks: 0
Thanked 0 Times in 0 Posts
Hi jellygoose,

No you didn't do anything wrong. Maybe it's time to look again at CQ
Last time I did this was at TMPEG version 2.50 or so, so maybe there is a difference now with CQ. Originally CQ_VBR was better quality than CQ for the same file size. Maybe it's time to review this. Also, before we didn't have prediction, so it was hard to target a file size. I'll do some tests to verify your findings. Mind you, I recall some people had problems playing KVCD encoded as CQ, but not as CQ_VBR . So the data on the stream has a different pattern from CQ to CQ_VBR. This you can see clearly in Bitrate Viewer.

-kwag
Reply With Quote
  #3
12-24-2002, 11:20 AM
SansGrip SansGrip is offline
Free Member

Join Date: Nov 2002
Location: Ontario, Canada
Posts: 1,135
Thanks: 0
Thanked 0 Times in 0 Posts
Running my first test now...
Reply With Quote
  #4
12-24-2002, 11:40 AM
Jellygoose Jellygoose is offline
Free Member

Join Date: Jun 2002
Location: Germany
Posts: 1,288
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by kwag
Hi jellygoose,

Mind you, I recall some people had problems playing KVCD encoded as CQ, but not as CQ_VBR. So the data on the stream has a different pattern from CQ to CQ_VBR. This you can see clearly in Bitrate Viewer.

-kwag
Indeed I see that in Bitrate Viewer... Well as for me CQ plays fine. I'll run some test later tonight, to see how the KVCD Matrix works with the "Ol'" CQ...

Happy Testing...
__________________
j3llyG0053
Reply With Quote
  #5
12-24-2002, 01:03 PM
SansGrip SansGrip is offline
Free Member

Join Date: Nov 2002
Location: Ontario, Canada
Posts: 1,135
Thanks: 0
Thanked 0 Times in 0 Posts
Resident Evil, 1h35m, 352x480

CQ_VBR 15.63: avg. Q = 2.12, peak Q = 5.92, size = 11,890,602

P spoilage 0, B spoilage 10

Closest Q level:

CQ 73, avg. Q = 2.36, peak Q = 3.80, size = 11,429,682

Closest size:

CQ 74, avg. Q = 1.84, peak Q = 3.63, size = 11,669,852

P spoilage 5, B spoilage 20

Closest Q level:

CQ 77, avg. Q = 2.34, peak Q = 3.75, size = 11,650,255

Closest size:

CQ 78, avg. Q = 1.84, peak Q = 3.59, size = 12,038,198

P spoilage 0, B spoilage 0

Closest Q level:

CQ 70, avg. Q = 1.85, peak Q = 3.50, size = 10,423,978

Closest size:

CQ 71, avg. Q = 1.86, peak Q = 3.63, size = 11,547,443

Observations

- CQ mode seems to be non-linear between integers, i.e. 73.9 is closer to 73 than to 74.

- P- and B-frame spoilage of 0 provides significant reduction in both Q level and file size, at least at this resolution.

I'm now going to run some "subjective quality" tests.
Reply With Quote
  #6
12-24-2002, 01:13 PM
kwag kwag is offline
Free Member

Join Date: Apr 2002
Location: Puerto Rico, USA
Posts: 13,537
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by SansGrip
Resident Evil, 1h35m, 352x480

CQ_VBR 15.63: avg. Q = 2.12, peak Q = 5.92, size = 11,890,602

P spoilage 0, B spoilage 10

Closest Q level:

CQ 73, avg. Q = 2.36, peak Q = 3.80, size = 11,429,682

Closest size:

CQ 74, avg. Q = 1.84, peak Q = 3.63, size = 11,669,852

P spoilage 5, B spoilage 20

Closest Q level:

CQ 77, avg. Q = 2.34, peak Q = 3.75, size = 11,650,255

Closest size:

CQ 78, avg. Q = 1.84, peak Q = 3.59, size = 12,038,198

P spoilage 0, B spoilage 0

Closest Q level:

CQ 70, avg. Q = 1.85, peak Q = 3.50, size = 10,423,978

Closest size:

CQ 71, avg. Q = 1.86, peak Q = 3.63, size = 11,547,443

Observations

- CQ mode seems to be non-linear between integers, i.e. 73.9 is closer to 73 than to 74.

- P- and B-frame spoilage of 0 provides significant reduction in both Q level and file size, at least at this resolution.

I'm now going to run some "subjective quality" tests.
You see, this is the kind of thing that was very hard to accomplish in the past without prediction
Now maybe we can even tune B and P spoilage with CQ IF CQ does provide better quality on the same space as CQ_VBR

-kwag
Reply With Quote
  #7
12-24-2002, 01:36 PM
SansGrip SansGrip is offline
Free Member

Join Date: Nov 2002
Location: Ontario, Canada
Posts: 1,135
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by kwag
Now maybe we can even tune B and P spoilage with CQ IF CQ does provide better quality on the same space as CQ_VBR
It doesn't. When viewed side-by-side the reason for the increased compression is obvious: it looks like I didn't use Blockbuster at all, with DCT blocks in all the usual places.

Seems that CQ mode is more aggressive than CQ_VBR. I'm now testing with more noise.
Reply With Quote
  #8
12-24-2002, 01:48 PM
SansGrip SansGrip is offline
Free Member

Join Date: Nov 2002
Location: Ontario, Canada
Posts: 1,135
Thanks: 0
Thanked 0 Times in 0 Posts
When you increase the noise to try to compensate for the blockiness, things start to look very bad very quickly.

Based on the tests I've done so far I would say that CQ_VBR provides significantly better subjective quality than CQ for a given bitrate, despite the lower Q level as reported by BitRate Viewer. So it seems the Q level, while generally a good indicator of relative quality, should not be relied upon without a side-by-side inspection of the two encodes.
Reply With Quote
  #9
12-24-2002, 01:57 PM
kwag kwag is offline
Free Member

Join Date: Apr 2002
Location: Puerto Rico, USA
Posts: 13,537
Thanks: 0
Thanked 0 Times in 0 Posts
Here are my test results:

Test #1 CQ_VBR: file size= 11,717KB


Test #1 CQ: file size= 11,517KB


I can see almost no artifacts on the CQ sample. They are clearly more visible on the CQ_VBR sample.

Here are the samples. See for yourselves:
http://www.kvcd.net/test-cq-vbr.m1v
http://www.kvcd.net/test-cq.m1v <-------- Winner or not

Script used:

LoadPlugin("C:\encoding\MPEG2DEC.dll")
LoadPlugin("C:\encoding\fluxsmooth.dll")
LoadPlugin("C:\encoding\sampler.dll")
LoadPlugin("C:\encoding\blockbuster.dll")
LoadPlugin("C:\encoding\legalclip.dll")
mpeg2source("K:\K19\VIDEO_TS\k19.d2v")
LegalClip()
BilinearResize(672,336,0,0,720,480)
FluxSmooth()
Blockbuster( method="noise", detail_min=1, detail_max=10, variance=.5, seed=1 )
AddBorders(16,72,16,72)
LegalClip()
#sampler()


So, what's next

-kwag
Reply With Quote
  #10
12-24-2002, 02:37 PM
Jellygoose Jellygoose is offline
Free Member

Join Date: Jun 2002
Location: Germany
Posts: 1,288
Thanks: 0
Thanked 0 Times in 0 Posts
That's exactly what I see kwag...

SansGrip: You're right, DCT Blocks don't disappear completely w/ blockbuster and CQ but... With CQ_VBR there are a lot more visible artifacts, especially around movements in the background... as far as my bad eyes can see...

Take a look at kwags samples, they show the exact same results that I have...
__________________
j3llyG0053
Reply With Quote
  #11
12-24-2002, 02:41 PM
Jellygoose Jellygoose is offline
Free Member

Join Date: Jun 2002
Location: Germany
Posts: 1,288
Thanks: 0
Thanked 0 Times in 0 Posts
I just took another look at kwags script again. How come you're using a variance of 5 for the blockbuster filter? is that the default setting?

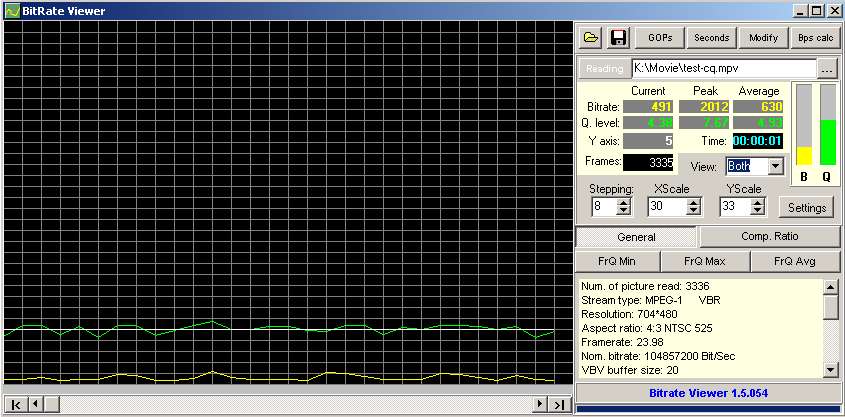

Another question: How come bitrate viewer tells me my VBV Buffer was 20, when I encoded with a value of 40 ?
__________________
j3llyG0053
Reply With Quote
  #12
12-24-2002, 02:48 PM
kwag kwag is offline
Free Member

Join Date: Apr 2002
Location: Puerto Rico, USA
Posts: 13,537
Thanks: 0
Thanked 0 Times in 0 Posts
Here's another view. Please pay special attention to the water and fire scenes:

These are shorter samples:
http://www.kvcd.net/k19-cq-vbr.m1v
http://www.kvcd.net/k19-cq.m1v

-kwag
Reply With Quote
  #13
12-24-2002, 02:57 PM
kwag kwag is offline
Free Member

Join Date: Apr 2002
Location: Puerto Rico, USA
Posts: 13,537
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by SansGrip
Seems that CQ mode is more aggressive than CQ_VBR. I'm now testing with more noise.
Maybe with CQ the noise level needed to eliminate DCT blocks is much lower that the needed level for CQ_VBR

-kwag
Reply With Quote
  #14
12-24-2002, 03:03 PM
Jellygoose Jellygoose is offline
Free Member

Join Date: Jun 2002
Location: Germany
Posts: 1,288
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by kwag
Quote:
Originally Posted by SansGrip
Seems that CQ mode is more aggressive than CQ_VBR. I'm now testing with more noise.
Maybe with CQ the noise level needed to eliminate DCT blocks is much lower that the needed level for CQ_VBR

-kwag
I think so too... I used variance=1 with CQ mode and it gave me excellent results...
__________________
j3llyG0053
Reply With Quote
  #15
12-24-2002, 03:59 PM
black prince black prince is offline
Free Member

Join Date: Jul 2002
Posts: 1,224
Thanks: 0
Thanked 0 Times in 0 Posts
Hi Kwag,

Kwag wrote:
Quote:
So, what's next
I downloaded both tests for CQ vs CQ_VBR and CQ is the winner
It's been some time since I encoded a 704x480, but this could be
another discovery. The fire scene was much better in the CQ clip
and other scenes were the same as CQ_VBR to me. This is worth
looking into. Someone correct me if I'm wrong but the file prediction
formula for CQ is more of a linear formula than CQ_VBR

-black prince
Reply With Quote
  #16
12-24-2002, 04:08 PM
kwag kwag is offline
Free Member

Join Date: Apr 2002
Location: Puerto Rico, USA
Posts: 13,537
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by black prince
I downloaded both tests for CQ vs CQ_VBR and CQ is the winner
It's been some time since I encoded a 704x480, but this could be
another discovery.
Hopefully something good will come out of this
Quote:
The fire scene was much better in the CQ clip
and other scenes were the same as CQ_VBR to me. This is worth
looking into.
Specially the fire and the water scene. The CQ_VBR sample shows more visible blocks.
Quote:
Someone correct me if I'm wrong but the file prediction
formula for CQ is more of a linear formula than CQ_VBR

-black prince
Not sure about that yet. More tests have to be made

The samples I posted above, that's the way the complete movie would fit on one CD at 704x480 , so at 528x480 it should be even better. And I like that

-kwag
Reply With Quote
  #17
12-24-2002, 04:26 PM
SansGrip SansGrip is offline
Free Member

Join Date: Nov 2002
Location: Ontario, Canada
Posts: 1,135
Thanks: 0
Thanked 0 Times in 0 Posts
kwag's clips definitely show the opposite result to my test. kwag, I think if you try it at 352x480 you'll notice much worse DCT blocks in the CQ version. If anyone wants I can do another couple of strips and post them for people to see.

Looking at the first clips you posted from K19, the CQ version is much better. What I do to compare clips is use VirtualDub to "fast recompress" them using Huffy (this takes a lot of disk space, but is lossless). Then I use a script like this:

Code:
clip1 = AviSource("test-cq-vbr.avi")
clip1 = clip1.Crop(0, 112, 704, 256)
clip1 = clip1.Subtitle("test-cq-vbr")

clip2 = AviSource("test-cq.avi")
clip2 = clip2.Crop(0, 112, 704, 256)
clip2 = clip2.Subtitle("test-cq")

StackVertical(clip1, clip2)
Levels(0, 1.5, 255, 16, 255)
ConvertToRGB()
to see them one on top of the other. If you do that, load it into VirtualDub and look in particular at frame 186:



Look at the chrome on the top/side of the car, and at the window in the bottom-left corner of the frame, and the wall in the top-right corner. The CQ version is obviously a lot better at this resolution...
Reply With Quote
  #18
12-24-2002, 04:26 PM
kwag kwag is offline
Free Member

Join Date: Apr 2002
Location: Puerto Rico, USA
Posts: 13,537
Thanks: 0
Thanked 0 Times in 0 Posts
Note: I just realized that the samples I encoded above were all done with "High quality" and not "Fast" on motion estimation in TMPEG.
And that takes a LOOOOOOONG time to encode. But if it makes a hell of a difference in quality, I WILL wait for longer encodes if I can get the best quality. I have to try again with "Fast" motion estimation and see if there's any visual difference between CQ and CQ_VBR. On "High quality" estimation, obviously there is a difference.

-kwag
Reply With Quote
  #19
12-24-2002, 04:29 PM
SansGrip SansGrip is offline
Free Member

Join Date: Nov 2002
Location: Ontario, Canada
Posts: 1,135
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by kwag
Note: I just realized that the samples I encoded above were all done with "High quality" and not "Fast" on motion estimation in TMPEG.
As long as both CQ_VBR and CQ versions were done the same, I don't care -- I'll wait twice as long for a better encode if that's what it takes .
Reply With Quote
  #20
12-24-2002, 04:31 PM
kwag kwag is offline
Free Member

Join Date: Apr 2002
Location: Puerto Rico, USA
Posts: 13,537
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by SansGrip
What I do to compare clips is use VirtualDub to "fast recompress" them using Huffy (this takes a lot of disk space, but is lossless).
Excelent script SansGrip
I have to dig more into AviSynth scripting

-kwag
Reply With Quote
Reply




Similar Threads
Thread Thread Starter Forum Replies Last Post
Avisynth: Interesting results with YlevelsS supermule Avisynth Scripting 2 08-06-2006 11:59 PM
Avisynth: Interesting ASharp phenomenon... audioslave Avisynth Scripting 12 10-23-2003 06:36 AM
Interesting info about the Luminance Level in CCE digitalize Video Encoding and Conversion 0 04-28-2003 12:29 PM
A couple of interesting links.. kwag Off-topic Lounge 0 12-31-2002 03:47 PM
KVCD: Interesting poll found kwag Video Encoding and Conversion 2 12-31-2002 02:44 AM

Thread Tools




All times are GMT -5. The time now is 03:20 PM  —  vBulletin Jelsoft Enterprises Ltd
