  #1
06-04-2005, 09:09 PM
Prodater64 Prodater64 is offline
Free Member

Join Date: Mar 2003
Location: Palma de Mallorca - España
Posts: 2,925
Thanks: 0
Thanked 0 Times in 0 Posts
Notice: Q prediction is not working fine by now, doubt to how HC Encoder manage bitrate when used with cqmaxbitrate parameter. Use only for test until new notice.

Updated: v.1.1b - 3 decimal place precission, popup log, log in cmd window, rejig if oversize. You must to test it.
Despite precission is 3 decimal places, it seems that HCBatch *CQMAXBITRATE function does prediction a little bit hard.
I reach +/- 2% precission. You must to test it.

HC-Qmatic 1.1b mirror 1

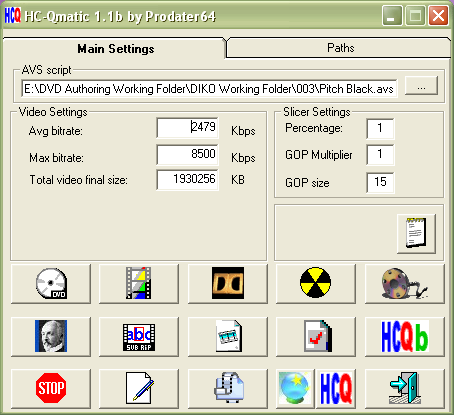

HC-Qmatic permits you to load an avs script an encode it with HC Encoder in Q mode, doing previously some prediction encodings that will take about 10-12% of the whole movie. (OPV with prediction)
It uses the Incredible's slicer routine and a ping-pong prediction.
HC-Qmatic link you to other programs, often used when doing digital video encoding: DVDDecrypter, DVD2AVI, AC3 Delay Corrector (file step file or massive correction), BeSweet, SubRip, Calcumatic, etc.
Also permits you create a batchlist for video encoding, edit that list an encode it. With this more calcumatic, you can encode a 2 or 3 movies DVD backup.
You can do too, batchlist audio encoding in a special way.
At last, you can edit the avs file loaded in the internal filebrowser texbox, and the HC.ini file.
It has a Stop button to end all tasks in course (if you want to end all tasks, press that button, not press HC Encoder exit button.
At first run, you need to set paths to programs.
I recommend you Calcumatic as calculator, but you can to use anyone.
Unzip it in HCBatch*.exe folder (I used 0.14 version). It must to be there also a valid HC.ini file.
End precission, in my tests, is between 0 and 4 % (downsized) of difference, more times between 0-2 %. I did about 10 test encodes.
It works with Windows XP.

HC-Qmatic 1.1b mirror 1

You need VB6 runtime routines only if you have not it yet and just in case tabctl32.ocx mirror 1 or tabctl32.ocx mirror 2.





(Thanks to ImageShack for Free Image Hosting)
Reply With Quote
Someday, 12:01 PM
admin's Avatar
Site Staff / Ad Manager

Join Date: Dec 2002
Posts: 42
Thanks: ∞
Thanked 42 Times in 42 Posts
  #2
06-05-2005, 01:55 AM
Zyphon Zyphon is offline
Free Member

Join Date: Oct 2003
Location: London, England (UK)
Posts: 1,035
Thanks: 0
Thanked 0 Times in 0 Posts
Hi Pro,

Great work, thank you. I use Inc's slicer() routine for my prediction and it is excellent.

I am glad that you implemented this routing into your tool, can't wait to do some tests nice work.
__________________
Regards.

Michael.
Reply With Quote
  #3
06-05-2005, 03:40 AM
incredible incredible is offline
Free Member

Join Date: May 2003
Location: Germany
Posts: 3,189
Thanks: 0
Thanked 0 Times in 0 Posts
Send a message via ICQ to incredible
ESO!

Thats a nice shot Pro!
Reply With Quote
  #4
06-05-2005, 09:11 AM
Prodater64 Prodater64 is offline
Free Member

Join Date: Mar 2003
Location: Palma de Mallorca - España
Posts: 2,925
Thanks: 0
Thanked 0 Times in 0 Posts
Reply With Quote
  #5
06-05-2005, 11:36 AM
kwag kwag is offline
Free Member

Join Date: Apr 2002
Location: Puerto Rico, USA
Posts: 13,537
Thanks: 0
Thanked 0 Times in 0 Posts
Talk about a LOOONG batch file
Great work Luis

-kwag
Reply With Quote
  #6
06-05-2005, 11:48 AM
Prodater64 Prodater64 is offline
Free Member

Join Date: Mar 2003
Location: Palma de Mallorca - España
Posts: 2,925
Thanks: 0
Thanked 0 Times in 0 Posts
I did an encode and result was -8 % file.
I should to check it. Well, for this is beta, isn't it?
Reply With Quote
  #7
06-05-2005, 11:52 AM
Prodater64 Prodater64 is offline
Free Member

Join Date: Mar 2003
Location: Palma de Mallorca - España
Posts: 2,925
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by kwag
Talk about a LOOONG batch file
Great work Luis

-kwag
Almost all my tools have some VB6 part and some batch file. But always I convert bat file in exe one. With this one, I can't to convert it to exe as it don't work fine.
But it works well anyway.
Reply With Quote
  #8
06-05-2005, 12:20 PM
incredible incredible is offline
Free Member

Join Date: May 2003
Location: Germany
Posts: 3,189
Thanks: 0
Thanked 0 Times in 0 Posts
Send a message via ICQ to incredible
You could also apply an Long_short option to slicer in your appl.
So it will get even more precise.

1. Ping 5%
2. Pong 5%

3. Ping 2%
4. Pong 2%

5. Ping 2%
6. Ping 2%
7. Ping 2%
8. Ping 2%
9. Ping 2% ---- match! (math. difference to first Pong and to 5% Slicing included )
Reply With Quote
  #9
06-05-2005, 12:53 PM
Prodater64 Prodater64 is offline
Free Member

Join Date: Mar 2003
Location: Palma de Mallorca - España
Posts: 2,925
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by incredible
You could also apply an Long_short option to slicer in your appl.
So it will get even more precise.

1. Ping 5%
2. Pong 5%

3. Ping 2%
4. Pong 2%

5. Ping 2%
6. Ping 2%
7. Ping 2%
8. Ping 2%
9. Ping 2% ---- match! (math. difference to first Pong and to 5% Slicing included )
Sorry I don't understand.
With what match ping 9?
Could you do use numbers?
Reply With Quote
  #10
06-10-2005, 12:19 PM
Prodater64 Prodater64 is offline
Free Member

Join Date: Mar 2003
Location: Palma de Mallorca - España
Posts: 2,925
Thanks: 0
Thanked 0 Times in 0 Posts
Now I'm fixing some bugs as some buttons not responding.
I'll post an update soon.

@Inc: Did you read my last question?
Reply With Quote
  #11
06-10-2005, 12:43 PM
incredible incredible is offline
Free Member

Join Date: May 2003
Location: Germany
Posts: 3,189
Thanks: 0
Thanked 0 Times in 0 Posts
Send a message via ICQ to incredible
Yep, and I answered in the PingPong Thread ....
Reply With Quote
  #12
06-16-2005, 09:23 AM
Prodater64 Prodater64 is offline
Free Member

Join Date: Mar 2003
Location: Palma de Mallorca - España
Posts: 2,925
Thanks: 0
Thanked 0 Times in 0 Posts
Updated v. 1.1b
It is still beta. You must to test it.
Reply With Quote
  #13
02-28-2006, 11:26 AM
jason jason is offline
Free Member

Join Date: Oct 2003
Posts: 130
Thanks: 0
Thanked 0 Times in 0 Posts
Hi Prodater,

Is HC Qmatic still available ?
I'm testing HC Enc, right now.
Thanks.

Edit : Nevermind, I've just dl ProCalc.
Thanks.
Reply With Quote
  #14
11-24-2006, 01:39 PM
este este is offline
Free Member

Join Date: Nov 2006
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
Hi,

is HC-Qmatic still available and/or under development?
Also ProCalc ASPA is not downloadable.

Is there any other tool for prediction?
Can someone give me a link?

este
Reply With Quote
  #15
11-24-2006, 04:51 PM
Dialhot Dialhot is offline
Free Member

Join Date: May 2003
Posts: 10,463
Thanks: 0
Thanked 0 Times in 0 Posts
I'm currently working on an HC-Matic completly different than Pro's one but don't expect it too soon unfortunally.
BTW, Pro is more often on Diko forums, perhaps you can find him there and ask him about where to DL his tools now.
(www.vmesquita.com).
Reply With Quote
  #16
11-26-2006, 06:46 PM
Prodater64 Prodater64 is offline
Free Member

Join Date: Mar 2003
Location: Palma de Mallorca - España
Posts: 2,925
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by Dialhot
I'm currently working on an HC-Matic completly different than Pro's one but don't expect it too soon unfortunally.
BTW, Pro is more often on Diko forums, perhaps you can find him there and ask him about where to DL his tools now.
(www.vmesquita.com).
Not really, i do spend similar time in both forums (few time in both ).



Here it is: http://download.yousendit.com/CAAE81F061E09E9B
Reply With Quote
  #17
11-27-2006, 07:48 AM
Dialhot Dialhot is offline
Free Member

Join Date: May 2003
Posts: 10,463
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by Prodater64
Quote:
Originally Posted by Dialhot
I'm currently working on an HC-Matic completly different than Pro's one but don't expect it too soon unfortunally.
BTW, Pro is more often on Diko forums, perhaps you can find him there and ask him about where to DL his tools now.
(www.vmesquita.com).
Not really, i do spend similar time in both forums (few time in both ).



Here it is: http://download.yousendit.com/CAAE81F061E09E9B
Do you want me to host it on kvcd.net ?
Reply With Quote
  #18
12-01-2006, 10:30 AM
rds_correia rds_correia is offline
Free Member

Join Date: Apr 2003
Location: Chinese Democracy starts now!
Posts: 2,563
Thanks: 1
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by Dialhot
I'm currently working on an HC-Matic completly different than Pro's one but don't expect it too soon unfortunally.
Woohooo!
Can you tell us what will be featuring HC-Matic?
Is it going to be the exact same principle of CQMatic?
What are you going to use? PureBasic?
Cheers
__________________
Rui
Reply With Quote
  #19
12-01-2006, 11:43 AM
Dialhot Dialhot is offline
Free Member

Join Date: May 2003
Posts: 10,463
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by rds_correia
Can you tell us what will be featuring HC-Matic?
Is it going to be the exact same principle of CQMatic?
What are you going to use? PureBasic?
Cheers
The idea is to combine KDVDCalc (the tool Vmesquita did a log time ago) CQMatic and Calcumatic in a single app, but using HC as encoder insteed of Tmpgenc. The goal is to be abble to predict for an episode DVD, or a disc with several movies, in a single operation.

But... I lost 3 days trying to build something from CQ/Calcumatic sources instead of from scratch. That was a bad idea and I just redoing all from the begining now.
Reply With Quote
  #20
01-03-2007, 06:30 PM
Dialhot Dialhot is offline
Free Member

Join Date: May 2003
Posts: 10,463
Thanks: 0
Thanked 0 Times in 0 Posts
Just to let you know that my tool (HCMatic) is working well. I just have to add a panel to set the parameters wanted for HC as for the moment everything is fixed in the tool and can't be changed (DC Prec, A/R, Max bitrate, GOP length...).

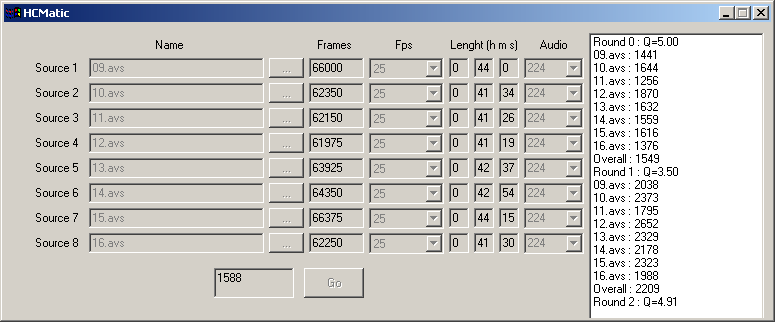

Here is a snapshot :


You can see the prediction (still running) for an 8 ep KDVD. The value 1588 at the bottom is the average bitrate to reach, all audio are set to "224" as I plan to use 2 streams, 112kbit/s each. On the right there is the log with : Q value tested, avg obtained for each source at this Q and overall average, then new Q value...

I did 3 complete discs till now : one two movies DVD that reached 4.63 GB after authoring, one 1-movie that hit exactly 4.7 () and an 8-ep disc that was slightly oversized (4.79 GB). Stay tuned...
Reply With Quote
