How do I set up CCE so that it comes to the same settings as TMPGEnc KDVD Full D1 template ?

I tried through the process of guess and check but ended up going in circles.
I got close but the videos ended up jerky, where it goes smooth then Pixelates and goes back.

Thanks.
Reply With Quote
Someday, 12:01 PM
admin's Avatar
Site Staff / Ad Manager

Join Date: Dec 2002
Posts: 42
Thanks: ∞
Thanked 42 Times in 42 Posts
  #2
01-06-2006, 12:22 AM
kwag kwag is offline
Free Member

Join Date: Apr 2002
Location: Puerto Rico, USA
Posts: 13,537
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by Dreagon
How do I set up CCE so that it comes to the same settings as TMPGEnc KDVD Full D1 template ?
Use the settings specified here: http://www.kvcd.net/portal/articles.php?lng=en&pg=20

-kwag
Reply With Quote
  #3
01-06-2006, 06:25 AM
Dreagon Dreagon is offline
Free Member

Join Date: Jan 2006
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
thanks, but I have one problem, that is I don't know how to set up the GOP settings.

also when I use 1 Pass VBR mode for a DVD it has an Input field for Quatinization factor, how does this affect the video ? really I don't know what to do with it..
also sorry for posting in the wrong place the first time.
Reply With Quote
  #4
01-06-2006, 07:09 AM
Dialhot Dialhot is offline
Free Member

Join Date: May 2003
Posts: 10,463
Thanks: 0
Thanked 0 Times in 0 Posts
What version of CCE do you have ?

For the Q factor, the lower the value, the better is the quality. Generally it is not watchable above 30 (40 for some users). Of course, the lower the value, the bigger is the encoded file.

It's like the CQ in tmpgenc except that it works at the opposite (the bigger the CQ, the better is the quality).
Reply With Quote
  #5
01-06-2006, 10:01 PM
Dreagon Dreagon is offline
Free Member

Join Date: Jan 2006
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
Thanks for info about the Q.
But when I had it at 1 the quality was a little lower than the one from TMPGEnce then again its no big since it shaved off 1hour =)

I use the latest version of CCE SP (2.70.02.04)

All thats left for me to find out how to set up the GOP settings.

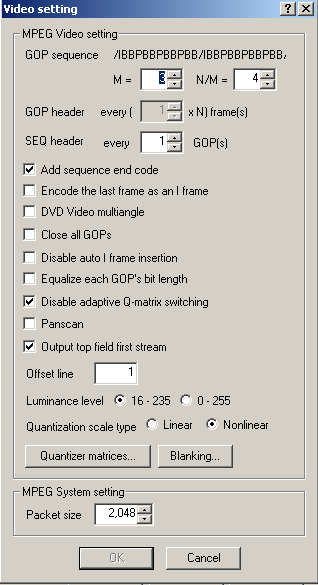

here an image of the menu where you set it up (I guess ?)
Reply With Quote
  #6
01-06-2006, 10:18 PM
kwag kwag is offline
Free Member

Join Date: Apr 2002
Location: Puerto Rico, USA
Posts: 13,537
Thanks: 0
Thanked 0 Times in 0 Posts
I believe you can't change the GOP in CCE as high as we use in KVCDs (24) in TMPGEnc.
It'a a CCE limitation.

-kwag
Reply With Quote
  #7
01-07-2006, 08:00 AM
Dreagon Dreagon is offline
Free Member

Join Date: Jan 2006
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
ouch well can i get a setting for mabey 15 ? or maybe I should just go back to TMPEnc ? hmm

Thanks for all the help Ille do what I can.
Reply With Quote
  #8
01-07-2006, 09:44 AM
Boulder Boulder is offline
Free Member

Join Date: Sep 2002
Location: Lahti, Finland
Posts: 1,652
Thanks: 0
Thanked 0 Times in 0 Posts
If you do KDVDs, the max GOP length is 18 frames for NTSC and 15 for PAL.
Reply With Quote
  #9
01-07-2006, 11:35 AM
Dreagon Dreagon is offline
Free Member

Join Date: Jan 2006
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
well yeah I know that, just I don't know how to put it in here like in TMPGenc its just plain says it in it's GOP settings.

The reason I wanna learn how to use CCE is becuase it is faster, I did at one point produce the same quality and size I got with TMPGenc but it was all jerky.. but I'm getting close thanks to all the help ive been getting.
All I need now is get the GOP setting in and get it back to the same size as before (now its been getting too big..)
Reply With Quote
  #10
01-07-2006, 12:10 PM
Boulder Boulder is offline
Free Member

Join Date: Sep 2002
Location: Lahti, Finland
Posts: 1,652
Thanks: 0
Thanked 0 Times in 0 Posts
CCE will produce better quality MPEG2 output than TMPGEnc.

If you do a pulldown from 23.976->29.97fps after encoding, you must use M=3, N/M=4 so you'll get 12-frame GOPs.

Set the offset line value to 0.

What is your source?
Reply With Quote
  #11
01-07-2006, 03:45 PM
Dialhot Dialhot is offline
Free Member

Join Date: May 2003
Posts: 10,463
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by Boulder
CCE will produce better quality MPEG2 output than TMPGEnc.
For medium/high average birate (above 2000). That means that if you do a KDVD, go for CCE. For a KVCD, keep tmpgenc (and the better in this case is to do MPEG1).
Reply With Quote
  #12
01-07-2006, 04:00 PM
Dreagon Dreagon is offline
Free Member

Join Date: Jan 2006
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts


Thank you very much Boulder !
heh Finally worked only 19 mins to encode 22 min video.

My source was an AVI, TV recording I have a buncha I need to turn into DVDs (clear the drive)

Thank you very much all, now instead of 2 hours for each file its just 16-30mins hehe.
