Looking for an ATI all in wonder card PCI.
Reply With Quote
Someday, 12:01 PM
admin's Avatar
Ads / Sponsors

Join Date: ∞
Posts: 42
Thanks: ∞
Thanked 42 Times in 42 Posts
  #2
07-21-2014, 01:09 AM
lordsmurf's Avatar
lordsmurf lordsmurf is offline
Site Staff | Video

Join Date: Dec 2002
Posts: 11,760
Thanked 2,147 Times in 1,848 Posts
Were you ever able to track one down?

These show up on eBay from time to time, but beware of card-only auctions -- those are useless. At minimum, it needs to come with its original purple break-out box. There's two kinds of purple breakout dongles, and the newer AGP and PCIe ones do not fit the older PCI cards (or the AGP 128 Pro).

Why not use an AGP cards?

- Did my advice help you? Then become a Premium Member and support this site.
- For sale in the marketplace: TBCs, workflows, capture cards, VCRs
Reply With Quote
  #3
07-21-2014, 08:28 AM
volksjager volksjager is offline
Free Member

Join Date: Nov 2011
Posts: 1,026
Thanked 211 Times in 190 Posts
the only good PCI card is the 7500 VE - sabre pc still has some brand new last time i checked

actually you dont need the breakout cables if you only want to capture S-Video
(breakout is required for the later cards that have square plug)
if you break the little plastic tab off a normal S-Video cable it plugs right in the pin-outs are correct.
you do need the breakout cables for composite
i tested this with 7500, 9000pro 9200 and 9700 and it works fine.

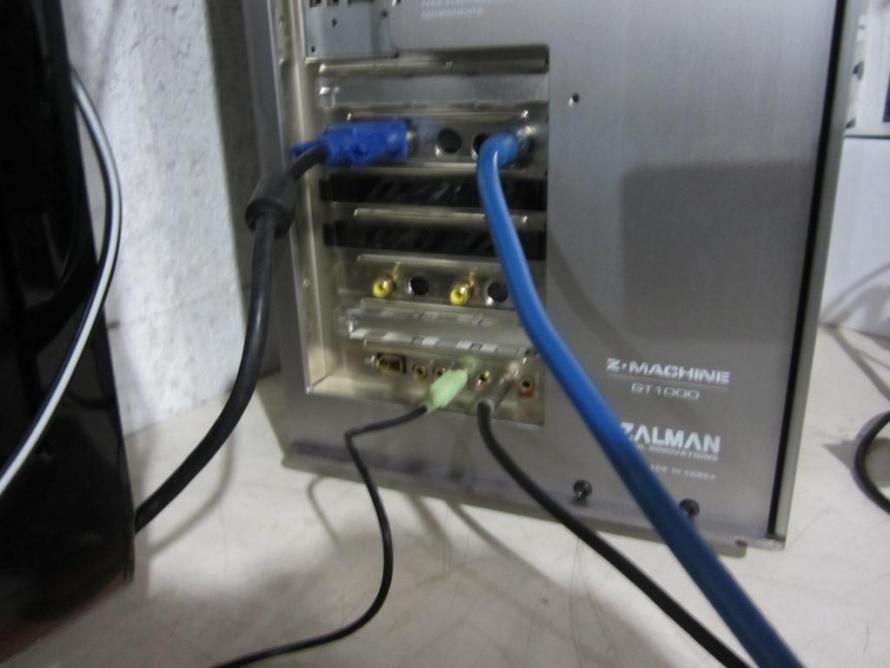

here is mine:
Reply With Quote
