does anyone have or know where i can find a list of Panny deck with the Z-mech.

i need some parts and want to buy some lower end decks that use the Z-mech
im pretty sure the AG-1320 and 1330 use them.
do any of the PV series?
Reply With Quote
Someday, 12:01 PM
admin's Avatar
Ads / Sponsors

Join Date: ∞
Posts: 42
Thanks: ∞
Thanked 42 Times in 42 Posts
  #2
04-20-2013, 11:37 PM
NJRoadfan NJRoadfan is offline
Premium Member

Join Date: Sep 2010
Posts: 1,042
Thanked 322 Times in 264 Posts
I think that any Panasonic deck that says "Superdrive" on the front uses the Z-mechanism. They were quite common in the late-90s-early-00s. Shouldn't have a problem finding them at a thrift store.
Reply With Quote
  #3
04-20-2013, 11:54 PM
kpmedia's Avatar
kpmedia kpmedia is offline
Site Staff | Web Hosting, Photo

Join Date: Feb 2004
Posts: 4,283
Thanked 355 Times in 332 Posts
I have no idea.
If it were me, I'd start looking through some of the service manuals.

- Did my advice help you? Then become a Premium Member and support this site.
- Please Like Us on Facebook | Follow Us on Twitter

- Need a good web host? Ask me for help! Get the shared, VPS, semi-dedicated, cloud, or reseller you need.
Reply With Quote
  #4
04-22-2013, 05:25 PM
volksjager volksjager is offline
Free Member

Join Date: Nov 2011
Posts: 1,023
Thanked 207 Times in 189 Posts
i was hoping some of the PV "Omnivison" decks would have the Z-Mech
those are everywhere and very cheap.

the "Super Drive" decks all seem to be AG And NV series and are hard to find locally.
i hate to pay $50 for an ebay deck just to throw 99% of it in the trash

i have a JDM deck with TBC im trying to fix
Reply With Quote
  #5
05-02-2013, 11:39 AM
volksjager volksjager is offline
Free Member

Join Date: Nov 2011
Posts: 1,023
Thanked 207 Times in 189 Posts
success!!

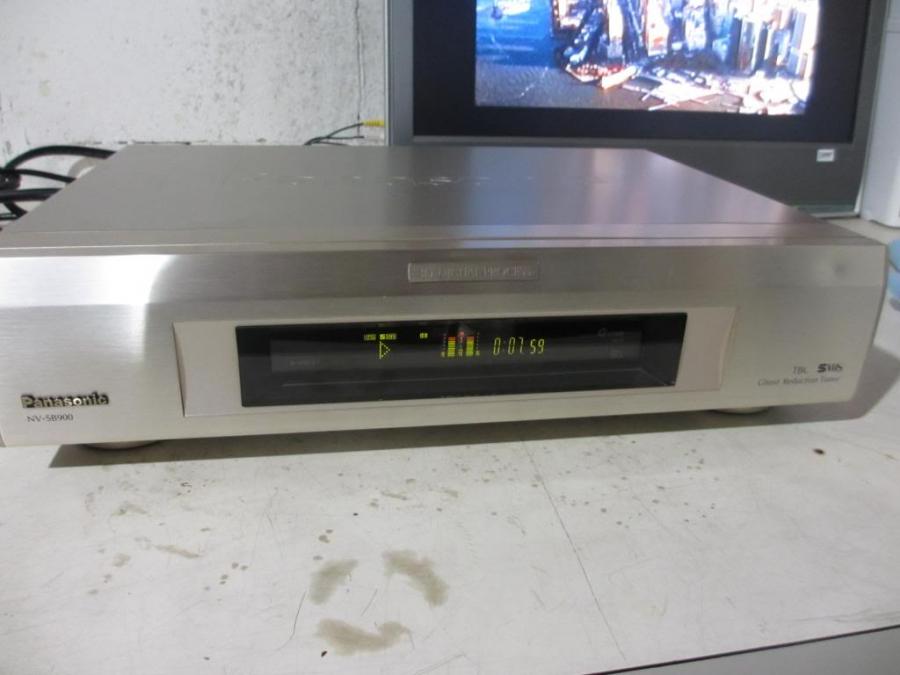

i repaired my NV-SB900 with parts from a $28 Ag-1330

now can anyone read Japanese??













Reply With Quote
  #6
05-04-2013, 09:36 AM
volksjager volksjager is offline
Free Member

Join Date: Nov 2011
Posts: 1,023
Thanked 207 Times in 189 Posts
i asked the guy i got it from to translate.

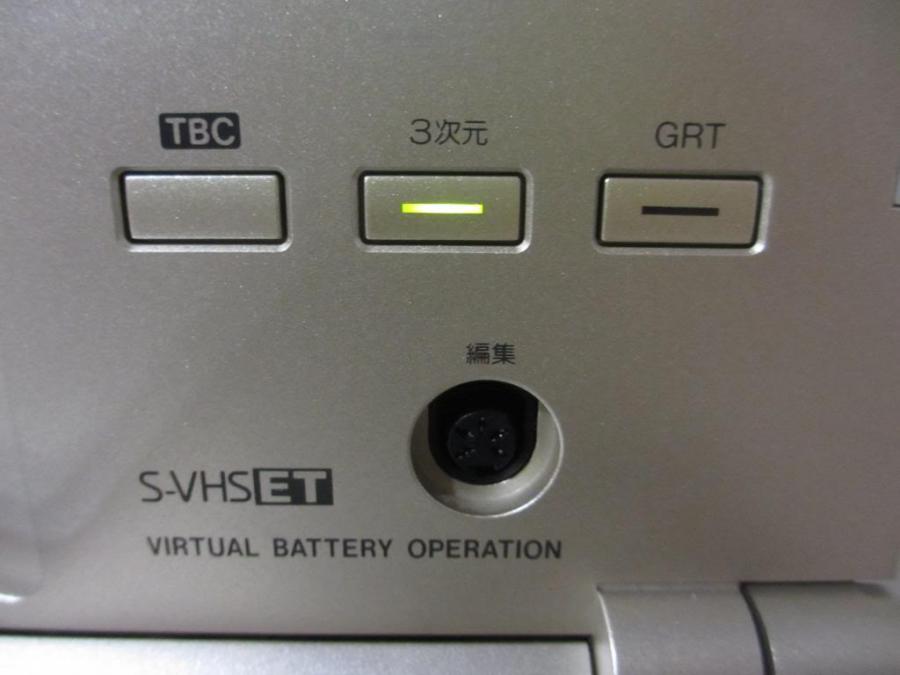

1st pic: 3D NR - (so this deck can separate the DNR from the TBC apparantly).

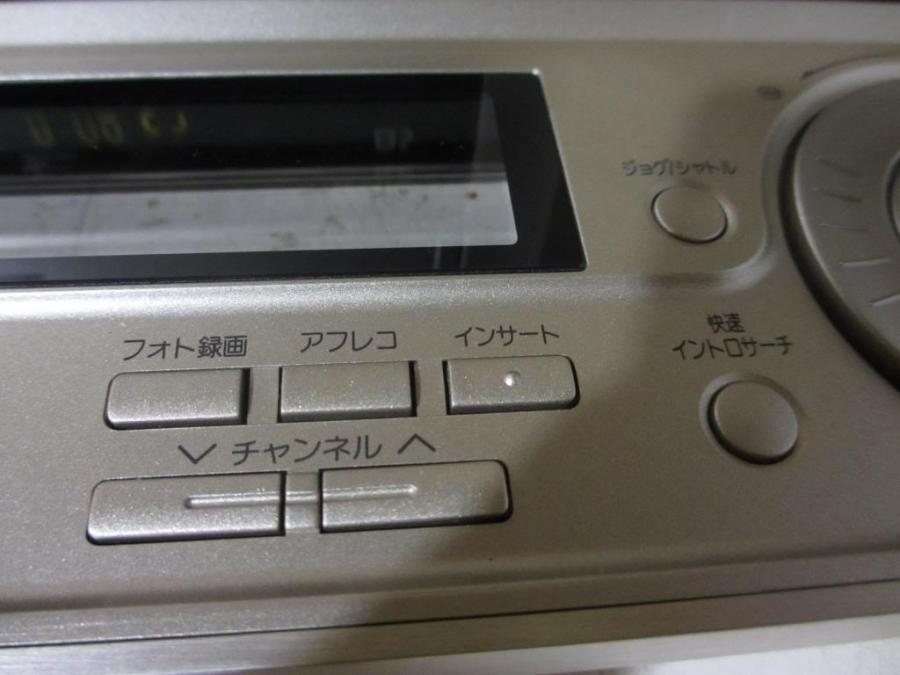

2nd pic: Photo movie?(possibly)? - Dubbing - Insert - channel select - two circle buttons are jog/shuttle and fast search.

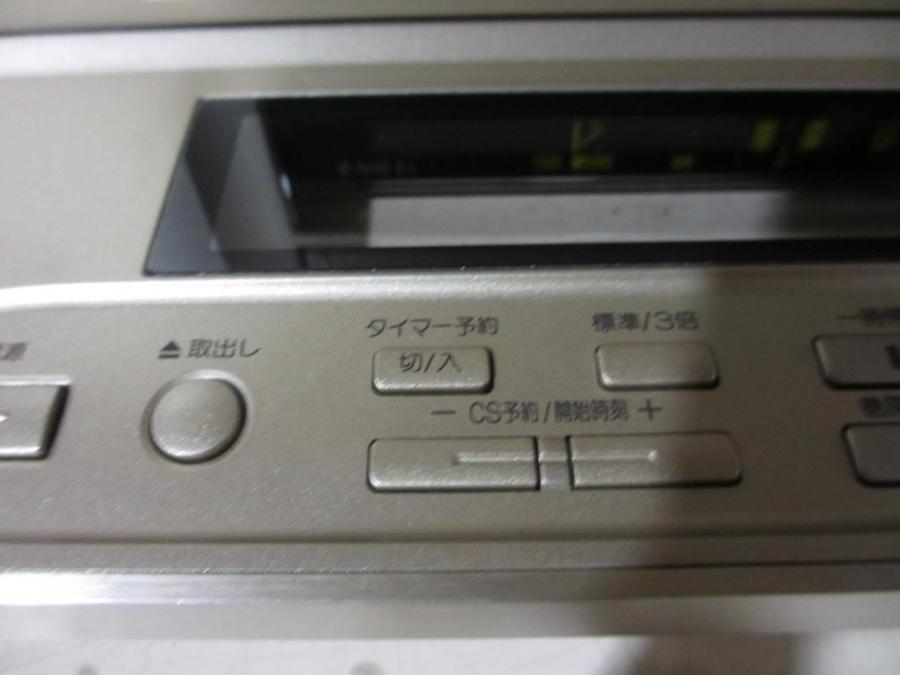

3rd pic: Eject - Timer Recording - Regular/3x Speed - CS Recording/Time Setting.

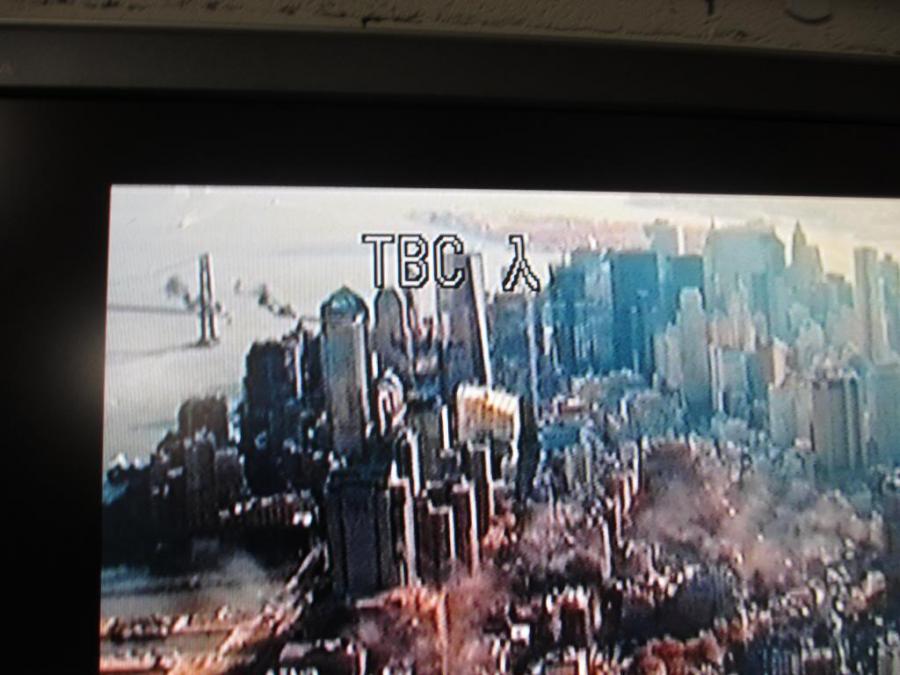

4th pic: TBC on

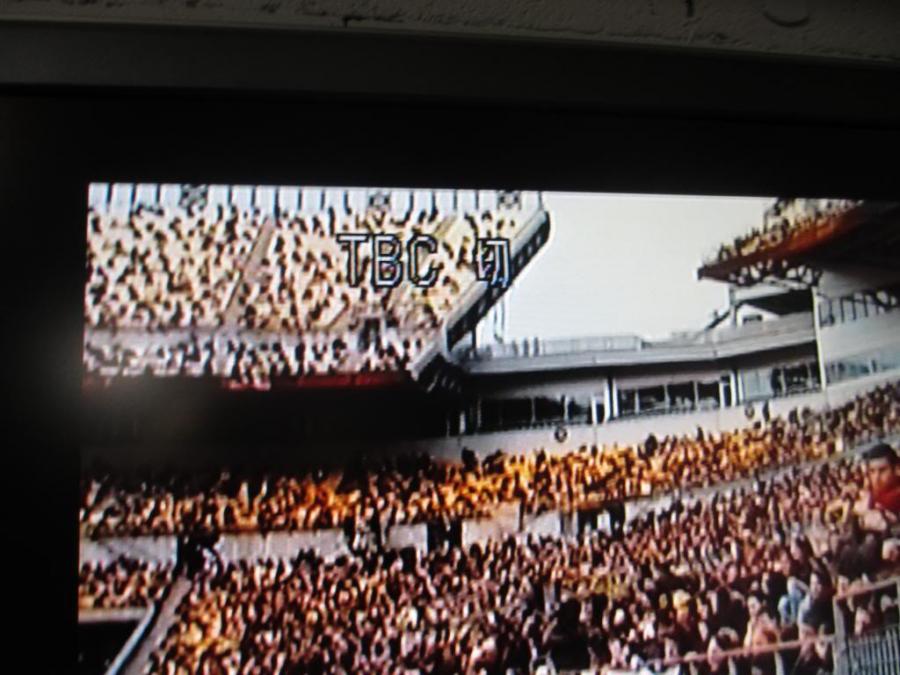

5th pic: TBC off
Reply With Quote
