i count 37 on a VEP03D52

the older style VEP03B70A boards are a little different

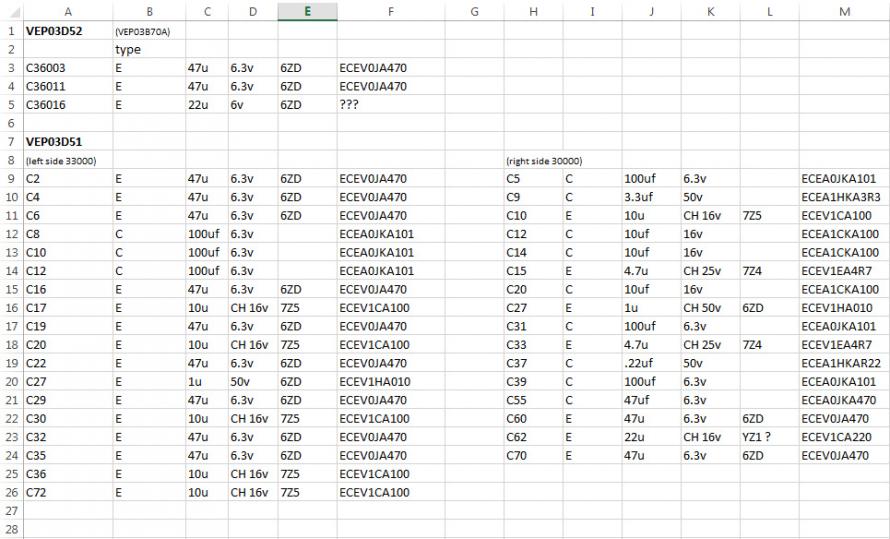

here's what i got...

https://www.mouser.com/ProjectManage...sID=d854e4d827

Panasonic Replacments
(6mm diameter on the big ones)
(5mm diameter on the small ones)
$14.56

look correct?

thoughts? suggestions?

(figured this might help someone else coming up with parts list, thats thinking about doing it)
Reply With Quote
Someday, 12:01 PM
admin's Avatar
Ads / Sponsors

Join Date: ∞
Posts: 42
Thanks: ∞
Thanked 42 Times in 42 Posts
  #2
10-11-2015, 03:26 PM
x77x x77x is offline
Free Member

Join Date: Sep 2015
Location: escanabasucks@yahoo.com
Posts: 35
Thanked 0 Times in 0 Posts
15 bucks? isnt that a lil cheap

did i pick the wrong ones or something? is there something better? what do you recommend?
thanks
Reply With Quote
  #3
10-11-2015, 03:42 PM
NJRoadfan NJRoadfan is offline
Premium Member

Join Date: Sep 2010
Posts: 1,134
Thanked 350 Times in 287 Posts
Electrolytic capacitors aren't that expensive compared to polymer or tantalum, the difference is the latter will basically last forever. I would go for the 105C rated parts though, as they last longer. No need for bi-polar caps unless the application specifies them.
Reply With Quote
  #4
10-11-2015, 04:35 PM
x77x x77x is offline
Free Member

Join Date: Sep 2015
Location: escanabasucks@yahoo.com
Posts: 35
Thanked 0 Times in 0 Posts
thanks your reply

im so confused when it comes to ordering caps...

so many choices, i would like to get something that lasts a little longer

wouldnt it have to be the same diameter?
(so it fits in the same place)

would you be so kind as to give me an example of what youd recommend?
Reply With Quote
  #5
10-11-2015, 06:09 PM
x77x x77x is offline
Free Member

Join Date: Sep 2015
Location: escanabasucks@yahoo.com
Posts: 35
Thanked 0 Times in 0 Posts
heres what i got from the 1980P manual

Reply With Quote
  #6
10-12-2015, 06:17 AM
x77x x77x is offline
Free Member

Join Date: Sep 2015
Location: escanabasucks@yahoo.com
Posts: 35
Thanked 0 Times in 0 Posts
so your saying go with the "Aluminum Organic Polymer Capacitors "

what about the ESR and Ripple Current, does that make a difference?
Reply With Quote
  #7
10-12-2015, 09:02 PM
x77x x77x is offline
Free Member

Join Date: Sep 2015
Location: escanabasucks@yahoo.com
Posts: 35
Thanked 0 Times in 0 Posts
my finished shopping cart, using organic polymer where ever i can

https://www.mouser.com/ProjectManage...sID=84d0f049a9
Reply With Quote
  #8
10-16-2015, 09:31 AM
dpalomaki dpalomaki is offline
Free Member

Join Date: Feb 2014
Location: VA
Posts: 1,428
Thanked 324 Times in 282 Posts
The original defective caps lasted for about 10+ years. They were a defective formula. New caps should last much longer. While physically larger caps will fit in many of the sites, they will not fit in some, so if you plan to use larger caps, check spacing.

Bottom line is how long do you plan to use the AG-1980 after you re-cap it.

I had some gear from the 1980s that used tantalums, they started to fail after ~10 years. They would pop when the gear was powered up. There are no guarantees, just probabilities.
Reply With Quote
  #9
10-21-2015, 07:04 AM
x77x x77x is offline
Free Member

Join Date: Sep 2015
Location: escanabasucks@yahoo.com
Posts: 35
Thanked 0 Times in 0 Posts
OH NO!

got my order today...
the Aluminum Organic Polymer Capacitors
are in a anti moisture bag!

anti moisture!? im guessing i bought the wrong ones

if they are sensative to humidity, then they cant be for VCRs?

it would be nice if NJRoadfan would clarify, what he meant by polymer...

should i be worried about it? did i get the wrong ones?

http://www.mouser.com/Search/Product...key667-6SVP47M

HELP!!!???
Reply With Quote
  #10
10-21-2015, 07:55 AM
NJRoadfan NJRoadfan is offline
Premium Member

Join Date: Sep 2010
Posts: 1,134
Thanked 350 Times in 287 Posts
Link is broken. They are likely fine, normally electronics are stored in antistatic bags with desiccant packets to absorb moisture. Modern computer motherboards use these capacitors, so they can deal with normal household humidity levels without a problem.
Reply With Quote
  #11
10-21-2015, 08:13 AM
x77x x77x is offline
Free Member

Join Date: Sep 2015
Location: escanabasucks@yahoo.com
Posts: 35
Thanked 0 Times in 0 Posts
but that is what you meant right?

or did you mean go with the square polymer ones?

heres the link again
http://www.mouser.com/Search/Product...key667-6SVP47M
Reply With Quote
  #12
10-21-2015, 09:48 AM
NJRoadfan NJRoadfan is offline
Premium Member

Join Date: Sep 2010
Posts: 1,134
Thanked 350 Times in 287 Posts
Those are the ones. Specs are better than the original units. They should last the life of the machine at this point.
Reply With Quote
  #13
10-21-2015, 03:47 PM
x77x x77x is offline
Free Member

Join Date: Sep 2015
Location: escanabasucks@yahoo.com
Posts: 35
Thanked 0 Times in 0 Posts
SUCCESS!!!

no more wavy lines!

im not gonna lie, it sucks!!!
took me 2 days, one to take um off, one to put the new ones on...

saved myself $120, but you know what...
with all the frustration involved, your better off send it to someone else to do =P
Reply With Quote
  #14
10-21-2015, 03:57 PM
NJRoadfan NJRoadfan is offline
Premium Member

Join Date: Sep 2010
Posts: 1,134
Thanked 350 Times in 287 Posts
Its good to know that substituting polymer caps works perfectly in this application.
Reply With Quote
  #15
10-21-2015, 04:35 PM
x77x x77x is offline
Free Member

Join Date: Sep 2015
Location: escanabasucks@yahoo.com
Posts: 35
Thanked 0 Times in 0 Posts
you be the judge...

BEFORE https://youtu.be/8rpUKih8uJI
AFTER https://youtu.be/3WBqxSpLhM4
Reply With Quote
