  #1
06-16-2013, 08:47 PM
Hampton80 Hampton80 is offline
Premium Member

Join Date: Apr 2004
Posts: 21
Thanked 1 Time in 1 Post

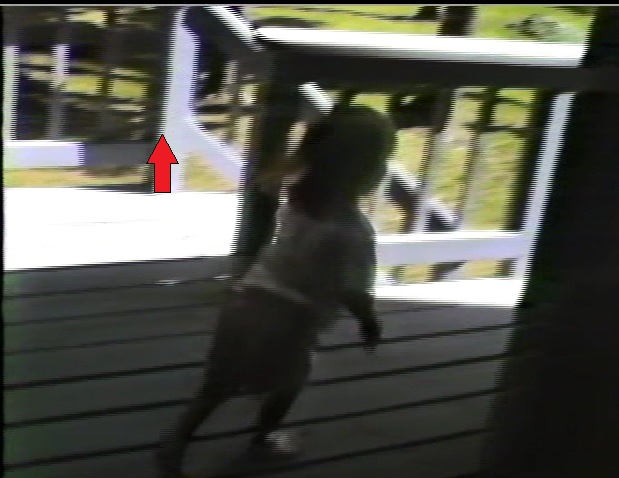

While viewing the authored DVD on a 42" Panasonic plasma tv, I see "streaks" in the image. I'm sure there's some technical term for this (which I'd be interested to know) but I can't seem to figure out what's causing it.



After doing some tests, it looks like it only appears when I use the 352x480 capture resolution setting. If I choose to capture at 720x480, I don't see these streaks in the image on the TV. However, I'd like to use 352x480 to keep file size down and to put more content on the DVD.

What could be causing this?

Here are my specs:
  • ATI 600USB stick for capture
  • CMC software: MPEG (DVD), VBR (3900 target, 4000 max), "Keep Interlaced" setting
  • Authored with TMPGEnc Authoring Works 4: Interlaced, top field first, default settings
Let me know if any other specs are helpful


Attached Images
File Type: jpg streaks.jpg (69.7 KB, 1 downloads)
Reply With Quote
Someday, 12:01 PM
admin's Avatar
Ads / Sponsors

Join Date: ∞
Posts: 42
Thanks: ∞
Thanked 42 Times in 42 Posts
  #2
06-16-2013, 09:09 PM
NJRoadfan NJRoadfan is offline
Premium Member

Join Date: Sep 2010
Posts: 1,031
Thanked 317 Times in 259 Posts
Are you referring to the interlacing artifacts or something else? That combing effect is what happens when viewer interlaced material on progressive scan displays. The TV or upscaling DVD player should take care of it.
Reply With Quote
  #3
06-16-2013, 09:57 PM
Hampton80 Hampton80 is offline
Premium Member

Join Date: Apr 2004
Posts: 21
Thanked 1 Time in 1 Post
Yes, the combing. The odd thing is that I'm seeing the combing effect on the TV when I play back the DVD using my Xbox360. I saw in a guide on this site that we should expect to see this effect on a computer monitor, but not on a TV.

What would cause a combing effect on a TV? And why do I see it on a 352x480 captured video but not on a 720x480 captured video?
Reply With Quote
  #4
06-16-2013, 10:33 PM
NJRoadfan NJRoadfan is offline
Premium Member

Join Date: Sep 2010
Posts: 1,031
Thanked 317 Times in 259 Posts
Your XBox isn't deinterlacing the content as it should, simple as that. Try another DVD player. Why the XBox? Chances are you have it connected via HDMI. The XBox natively outputs HD video and likely scales up SD content so the TV's deinterlacer never gets to touch the video. I wouldn't be surprised its a firmware bug as 352x480i DVDs aren't all that common.
Reply With Quote
  #5
06-19-2013, 06:56 PM
admin's Avatar
admin admin is offline
Site Staff | Web Development

Join Date: Jul 2003
Posts: 4,368
Thanked 584 Times in 437 Posts
The XBOX is a terrible DVD/media player. I have one, and I've never used it for that.
I remember being disappointed. I had to buy a WDTV and a good DVD (now Blu-ray) player for that room. The XBOX is just for games.

- Did this site help you? Then upgrade to Premium Member and show your support!
- Also: Like Us on Facebook for special DVD/Blu-ray news and deals!
Reply With Quote
