  #1
04-07-2016, 07:08 PM
harky harky is offline
Free Member

Join Date: Apr 2016
Location: Singapore
Posts: 47
Thanked 0 Times in 0 Posts
I do abit of research there here, notice there isnt much device out there in the market for vcr capture.

I manage to find Grass Valley ADVC 110 at a very cheap deal but I don't have a FireWire port
(but I know can get the pcie card, but again this device is more on Pal?)

BUT my vhs tape is combine of NTSC & PAL version although my VCR player can play both.

I think of getting Hauppauge USB Live 2 although i personally prefer PCI-e.

1. In term of capture Card DV or SD, I not sure which is good also. Are both of them turn out to be same? As in quality?
2. Some1 mention abt whether USB-Live2 supports PAL60? What is that?
3. Will Hauppauge ImpactVCB-e PCI Express Video Capture Card work too?
Reply With Quote
Someday, 12:01 PM
admin's Avatar
Ads / Sponsors

Join Date: ∞
Posts: 42
Thanks: ∞
Thanked 42 Times in 42 Posts
  #2
04-07-2016, 10:02 PM
sanlyn sanlyn is offline
Premium Member

Join Date: Aug 2009
Location: N. Carolina and NY, USA
Posts: 3,648
Thanked 1,198 Times in 959 Posts
Quote:
Originally Posted by harky View Post
I do abit of research there here, notice there isnt much device out there in the market for vcr capture.
It depends. What operating system are you using? There are about a dozen capture cards, new and used, recommended for XP. For Vista/Win7 you have about 3 or 4 choices worth pursuing. For Win10 you're down to two that are, well, OK.

Quote:
Originally Posted by harky View Post
I manage to find Grass Valley ADVC 110 at a very cheap deal but I don't have a FireWire port
(but I know can get the pcie card, but again this device is more on Pal?)
It's good that you don't have a Firewire port and that you didn't get the Grass Valley. Pro's in analog digitization don't recommend DV cards for capturing analog sources. Pro's and advanced users don't do it that way, so neither do most members here. This forum and others advise against analog tape to DV. Besides, among Canopus cards the ADVC 110 is their worst.

Quote:
Originally Posted by harky View Post
BUT my vhs tape is combine of NTSC & PAL version although my VCR player can play both.

I think of getting Hauppauge USB Live 2 although i personally prefer PCI-e.
The Hauppauge works with NTSC and PAL. It's on our recommended list. Why do you prefer PCIe? Wouldn't you prefer a current product that we know gives good performance for analog to PC capture? We recommend three PCI (not PCIe) capture cards: ATI TV Wonder HD 600 PCI capture card, Diamond ATI TV Wonder HD 600 PCI capture card, Diamond ATI TV Wonder HD 650 PCI capture card. Note: we do not recommend the USB version of those last three cards.

If you don't want PCI, get the Hauppauge USB Live 2 or the ATI TV Wonder HD 600 USB2 capture stick. There's no problem with capturing via USB 2.

Quote:
Originally Posted by harky View Post
1. In term of capture Card DV or SD, I not sure which is good also. Are both of them turn out to be same? As in quality?
Analog captured to DV sucks. I guess you know that "DV" and "SD" are both standard definition, right? VHS is usually captured to a PC using lossless compression in 720x576 (PAL) or 720x480 (NTSC) frames. This frame size is suitable for later encoding as DVD, BluRay, and AVCHD formats, or generic containers like mkv, MP4, etc.

Quote:
Originally Posted by harky View Post
2. Some1 mention abt whether USB-Live2 supports PAL60? What is that?
Is PAL60 the way your PAL/NTSC VCR ouputs NTSC video? You haven't told us what VCR you use. But PAL60 is usually associated with game consoles, among other things. Frankly, I don't think it affects you. Google can help you find out, Try these: http://www.answers.com/Q/What_is_pal_60, https://en.wikipedia.org/wiki/PAL#Mu...d_.22PAL_60.22 .

Quote:
Originally Posted by harky View Post
3. Will Hauppauge ImpactVCB-e PCI Express Video Capture Card work too?
You want to pay for videoconferencing features? How often will you be conferencing? If you just want to capture analog video for digital conversion, any card mentioned above will do it correctly.

You didn't mention what you want for final digital output format. Have you seen the recent posts dealing with this subject? This one was posted during the past day or two: Capture analog using VirtualDub with camcorder passthrough?. Several other VHS capture posts and problem discussions about various methods and media have appeared during the past few days.

Have you seen the forum's capture and restoration guide? http://www.digitalfaq.com/guides/video.htm. There are other threads with updates to those guides.

Last edited by sanlyn; 04-07-2016 at 10:23 PM.
Reply With Quote
The following users thank sanlyn for this useful post: ferggue (11-12-2019), lordsmurf (04-25-2016)
  #3
04-07-2016, 10:13 PM
harky harky is offline
Free Member

Join Date: Apr 2016
Location: Singapore
Posts: 47
Thanked 0 Times in 0 Posts
Thanks for reply

MY current OS is Win 10 (if i had to downgrade to Win7), no choice i had to do it..
I using "normal" LG V9722W (VCR+DVD Combo player), it very hard to get 1 VCR player in my country (Singapore).
The reason i getting is Pci-e is, i tot it look more stable than USB?

But i think i will get Hauppauge USB Live 2
I wanted to capture into lossless encoding format (.avi) -> Edit using adobe premise pro -> MPEG-2 (.ts?) or H.264 (.mp4?) (which is the best?).

wonder my steps is correct?

Quote:
Originally Posted by sanlyn View Post
It depends. What operating system are you using? There are about a dozen capture cards, new and used, recommended for XP. For Vista/Win7 you have about 3 or 4 choices worth pursuing. For Win10 you're down to two that are, well, OK.

It's good that you don't have a Firewire port and that you didn't get the Grass Valley. We don't recommend DV cards for capturing analog sources. Pros don't do it that way, and neither do most members here. This forum and others recommend against analog tape to DV. Besides, among Canopus cards the ADVC 110 is their worst.

The Hauppauge works with NTSC and PAL. It's on our recommended list. Why do you prefer PCIe? Wouldn't you prefer a current product that we know gives good performance for analog to PC capture? We recommend three PCI (not PCIe) capture cards: ATI TV Wonder HD 600 PCI capture card, Diamond ATI TV Wonder HD 600 PCI capture card, Diamond ATI TV Wonder HD 650 PCI capture card. Note: we do not recommend the USB version of those last three cards.

If you don't want PCI, get the Hauppauge USB Live 2 or the ATI TV Wonder HD 600 USB2 capture stick ~$50-100. There's nothing wrong with capturing via USB 2.

Analog captured to DV sucks. I guess you know that "DV" and "SD" are both standard definition, right?

Is PAL60 the way your PAL/NTSC VCR ouputs NTSC video? You haven't told us what VCR you use. But PAL60 is usually associated with game consoles, among other things. Frankly, I don't think it affects you. Google can help you find out, Try these: http://www.answers.com/Q/What_is_pal_60, https://en.wikipedia.org/wiki/PAL#Mu...d_.22PAL_60.22 .

3. Will Hauppauge ImpactVCB-e PCI Express Video Capture Card work too?
You want to pay for videoconferencing features? How often will you be conferencing? If you just want to capture analog video for digital conversion, any card mentioned above will do it correctly.

You didn't mention what you want for final digital output format. Have you seen the recent posts dealing with this subject? This one was posted during the past day or two: Capture analog using VirtualDub with camcorder passthrough?. Several other VHS capture posts and problem discussions appeared during the past few days.

Have you seen the forum's capture and restoration guide? http://www.digitalfaq.com/guides/video.htm. There are other threads with updates to those guides.
Reply With Quote
  #4
04-07-2016, 11:08 PM
sanlyn sanlyn is offline
Premium Member

Join Date: Aug 2009
Location: N. Carolina and NY, USA
Posts: 3,648
Thanked 1,198 Times in 959 Posts
Whether or not a PCIe or USB capture device is more "stable" than the other, USB 2.0 for analog to PC capture is perfectly adequate using capture apps like VirtualDub. In your case, playback stability problems will begin with your DVD/VCR combo and the fact that you don't a line-level tbc or a frame-level tbc. Unfortunately a combo unit is far from an optimal tape player. But if that's all you have available, I think you'll have to resign yourself to some rather poor quality captures. I would advise that you don't discard your most valued tapes. Once you see the results of poor playback from your combo unit to your captured files, you might realize that you'll want to get better hardware later. Regardless of the capture card used, none can correct for poor playback hardware.

I don't know what you mean by "edit", but Premiere Pro is very good for cut-and-join, adding transition effects, audio, titles, etc., has very advanced color controls, and has at least tolerable encoding. For denoising or other restoration and video repair work, it's practically useless. But I suspect that repair and restoration aren't on your agenda. I suspect you;ll have great difficulty with Premiere Pro and most of the lossless codecs, such as huffyuv. Probably the Lagarith lossless codec is best suited for your lossless captures.

From a lossless capture, which is also used for archiving, you can encode to any final format you want. DVD can be played anywhere. BluRay, AVCHD, mp4 or anything encoded with h.264 cannot be used with DVD-only players -- they require a BluRay player or external player that can recognize h.264 encoding. ".ts" elementary files and mp4 can't be used for formal BluRay or AVCHD authoring. Not all set top players will play video as a ".ts" container file.

Don;t be tempted to try to upscale your captures to HD frame sizes. You will be terrifically disappointed with the results. You can't make decent high-definition video from low-resolution sources. Let your media player or Tv do the hardware upscaling for you, which looks better.

You might want to consider a different path altogether. You can record your tapes to very high bitrate DVD (MPEG) from your combo's tape output to an external DVD recorder. If so, you might at least have a chance that the VCR-to-DVD recorder circuitry has some level of time base control. That alone would greatly improve your images. High bitrate MPEG can be copied to a computer and edited with smart-rendering editors.

Thank you for giving more details about your equipment and software.

Last edited by sanlyn; 04-07-2016 at 11:22 PM.
Reply With Quote
The following users thank sanlyn for this useful post: lordsmurf (04-25-2016)
  #5
04-08-2016, 12:09 AM
harky harky is offline
Free Member

Join Date: Apr 2016
Location: Singapore
Posts: 47
Thanked 0 Times in 0 Posts
ahha thanks.

ya not possible to get gd vcr at the moment but if it is available i re-capture again.
Mainly as for now, just to backup first 'in case' the vhs tape really die off.

I dont hav much vhs tape left, only few. OF COURSE, not to discard my most valued tapes!!

I do have another HDD DVD recorder but some ppl dont recommend it ?
But the DVD recorder wont able to set any bitrate as i tot is default setting??

Do u mean i use the VCR -> Record into HDD DVD recorder -> play it using HDD DVD recorder -> Capture it? I dont think i can copy the MPEG a computer in the DVD recorder

Quote:
Originally Posted by sanlyn View Post
Whether or not a PCIe or USB capture device is more "stable" than the other, USB 2.0 for analog to PC capture is perfectly adequate using capture apps like VirtualDub. In your case, playback stability problems will begin with your DVD/VCR combo and the fact that you don't a line-level tbc or a frame-level tbc. Unfortunately a combo unit is far from an optimal tape player. But if that's all you have available, I think you'll have to resign yourself to some rather poor quality captures. I would advise that you don't discard your most valued tapes. Once you see the results of poor playback from your combo unit to your captured files, you might realize that you'll want to get better hardware later. Regardless of the capture card used, none can correct for poor playback hardware.

I don't know what you mean by "edit", but Premiere Pro is very good for cut-and-join, adding transition effects, audio, titles, etc., has very advanced color controls, and has at least tolerable encoding. For denoising or other restoration and video repair work, it's practically useless. But I suspect that repair and restoration aren't on your agenda. I suspect you;ll have great difficulty with Premiere Pro and most of the lossless codecs, such as huffyuv. Probably the Lagarith lossless codec is best suited for your lossless captures.

From a lossless capture, which is also used for archiving, you can encode to any final format you want. DVD can be played anywhere. BluRay, AVCHD, mp4 or anything encoded with h.264 cannot be used with DVD-only players -- they require a BluRay player or external player that can recognize h.264 encoding. ".ts" elementary files and mp4 can't be used for formal BluRay or AVCHD authoring. Not all set top players will play video as a ".ts" container file.

Don;t be tempted to try to upscale your captures to HD frame sizes. You will be terrifically disappointed with the results. You can't make decent high-definition video from low-resolution sources. Let your media player or Tv do the hardware upscaling for you, which looks better.

You might want to consider a different path altogether. You can record your tapes to very high bitrate DVD (MPEG) from your combo's tape output to an external DVD recorder. If so, you might at least have a chance that the VCR-to-DVD recorder circuitry has some level of time base control. That alone would greatly improve your images. High bitrate MPEG can be copied to a computer and edited with smart-rendering editors.

Thank you for giving more details about your equipment and software.
How do i know which VCR contain TBC?
Reply With Quote
  #6
04-08-2016, 06:13 AM
Goldwingfahrer's Avatar
Goldwingfahrer Goldwingfahrer is offline
Remembered

Join Date: Aug 2013
Location: Switzerland
Posts: 453
Thanked 75 Times in 70 Posts
Is usually in the Recorder description.
Older users have the whole VCR / Betamax / Video2000 / VHS time participated
and since bought divere Recorder.
Experience can not be bought

buy, repair + Maintain service recorder / Feeder.
After 2 years, you have 40 to 50 recorders and know communication
The 100 USD recorder to major broadcast cost 10'000 USD and more.

The whole thing is a year-long process.

What I do not understand ... why so many user want to digitize their films from analogue tapes himself, that gives you the pros.
The restoration then with Avisynth are still plenty of work.
Reply With Quote
  #7
04-08-2016, 08:56 AM
msgohan msgohan is offline
Free Member

Join Date: Feb 2011
Location: Vancouver, Canada
Posts: 1,146
Thanked 257 Times in 221 Posts
Quote:
Originally Posted by Goldwingfahrer View Post
After 2 years, you have 40 to 50 recorders and know communication.
Holy hell! Here I thought I was crazy, playing around with ~20 models.

And yeah, buying the equipment if you only have a "few" tapes is dumb. Especially when you don't know how to use it properly, without an additional time investment.

Find a good transfer service in Singapore. Isn't that a techy place? There must be some videophile-grade business around.
Reply With Quote
  #8
04-08-2016, 12:04 PM
Goldwingfahrer's Avatar
Goldwingfahrer Goldwingfahrer is offline
Remembered

Join Date: Aug 2013
Location: Switzerland
Posts: 453
Thanked 75 Times in 70 Posts
Yes, crazy is sometimes very helpful.....
Is 2 years course completely understated.
Reply With Quote
  #9
04-08-2016, 11:18 PM
harky harky is offline
Free Member

Join Date: Apr 2016
Location: Singapore
Posts: 47
Thanked 0 Times in 0 Posts
i dont think is there is a good transfer service here
but i doubt they will do a good job as they may just purely convert from VHS -> DVD , which anyone can do it as long u had a vcr and a dvd recorder which is not what i want.....

if want raw file, i had to diy


Quote:
Originally Posted by msgohan View Post
Holy hell! Here I thought I was crazy, playing around with ~20 models.

And yeah, buying the equipment if you only have a "few" tapes is dumb. Especially when you don't know how to use it properly, without an additional time investment.

Find a good transfer service in Singapore. Isn't that a techy place? There must be some videophile-grade business around.

Last edited by harky; 04-08-2016 at 11:43 PM.
Reply With Quote
  #10
04-08-2016, 11:27 PM
metaleonid metaleonid is offline
Free Member

Join Date: Aug 2011
Location: Fort Lee, New Jersey
Posts: 493
Thanked 18 Times in 16 Posts
Quote:
Originally Posted by msgohan View Post
And yeah, buying the equipment if you only have a "few" tapes is dumb. Especially when you don't know how to use it properly, without an additional time investment.
Why not? He can buy it, transfer and sell it. That's what I did in the past...
Reply With Quote
The following users thank metaleonid for this useful post: harky (04-09-2016)
  #11
04-09-2016, 01:51 AM
harky harky is offline
Free Member

Join Date: Apr 2016
Location: Singapore
Posts: 47
Thanked 0 Times in 0 Posts
any idea where i can get the solution / liquid to clean vhs tape itself??

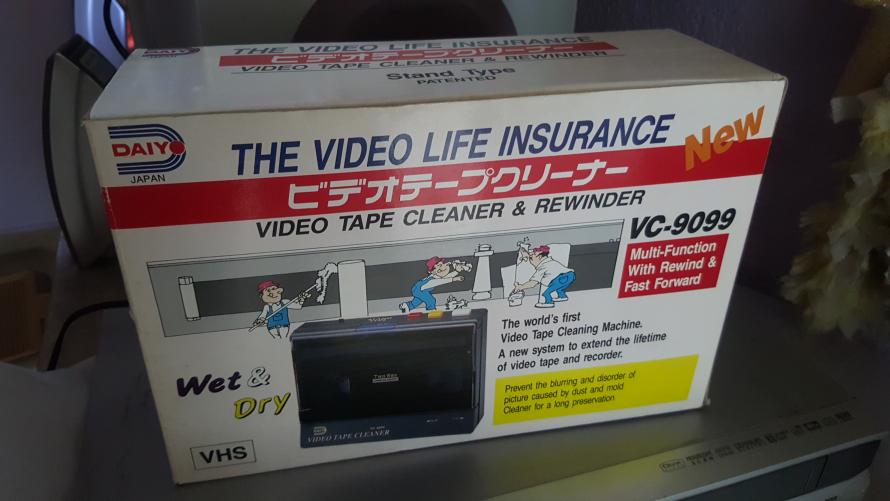

i had the machine to clean but it is a dry cleaner



Beside this..
i like to ask
Here is one of vhs tht i record last time.. (many many year ago.. using old pci)

https://www.youtube.com/watch?v=ArSUzbtQDVs
U see 1:01 onward tht top side.. there was a distorted graphic, isit because no TBC? or my tape is spoilt?
Reply With Quote
  #12
04-09-2016, 06:26 AM
msgohan msgohan is offline
Free Member

Join Date: Feb 2011
Location: Vancouver, Canada
Posts: 1,146
Thanked 257 Times in 221 Posts
Because of no line TBC. The top is not the main problem. The entire image is wavy/bent.

You don't want to be physically cleaning your tapes unless there's actually a substance like mold on them. And doing that properly is an involved process, from what I hear. Not for the novice.

The "cleaner" portion of that rewinder is a scam, basically. There is no possible way for physical tape damage to cause "blurring" of a picture like the box claims.
Reply With Quote
The following users thank msgohan for this useful post: lordsmurf (04-25-2016)
  #13
04-09-2016, 06:40 AM
harky harky is offline
Free Member

Join Date: Apr 2016
Location: Singapore
Posts: 47
Thanked 0 Times in 0 Posts
hahah i see.. i tot tht is NORMAL i mean the wavy / bent in vcr.. as some part have, some part dont have
hard to find a vrc with tbc in my country :/

Do this so call "tbc" works?
http://www.unterzuber.com/TBC.html

Quote:
Originally Posted by msgohan View Post
Because of no line TBC. The top is not the main problem. The entire image is wavy/bent.

You don't want to be physically cleaning your tapes unless there's actually a substance like mold on them. And doing that properly is an involved process, from what I hear. Not for the novice.

The "cleaner" portion of that rewinder is a scam, basically. There is no possible way for physical tape damage to cause "blurring" of a picture like the box claims.
Reply With Quote
  #14
04-09-2016, 02:07 PM
sanlyn sanlyn is offline
Premium Member

Join Date: Aug 2009
Location: N. Carolina and NY, USA
Posts: 3,648
Thanked 1,198 Times in 959 Posts
Quote:
Originally Posted by harky View Post
hahah i see.. i tot tht is NORMAL i mean the wavy / bent in vcr.. as some part have, some part dont have
hard to find a vrc with tbc in my country :/
Not "normal", as iot indicates bad line timing errors as well as poor VCR alignment. It is "normal" only in the way that the signal was interpreted by the capture equipment as having many playback errors.

Do this so call "tbc" works?
http://www.unterzuber.com/TBC.html[/quote]That's difficult to say how well it works because the examples shown in that article appear to be fairly clean tapes with minor, typical problems. The tbc you refer to is a pro shop unit that would cost well over 1200 dollars SGD. At that price you could buy better players and capture gear from anywhere in the world and still be able to pay for international shipping.

I see on the internet that there are VHS transfer services in Singapore, but the 5 that I checked seem to capture only to lossy MPG or h.264. That would work, of course, but it would be an obstacle to any further restoration or cleanup that you might want to do. For simple cut and join edits you would need smart-rendering software. For better cleanup you could decode the lossy transfers (if they are encoded at high bitrates) to lossless media and use Avisynth or VirtualDub to do some cleanup, then encode to the final format of your choice. That's the long way of going about it, but if you can find decent transfer prices you would at least have workable digital versions of your tapes. You might consider trying one old tape to see how the services handle it.

Digitalfaq's services can make proper, professional lossless digital captures. But of course they're in the U.S.
Reply With Quote
The following users thank sanlyn for this useful post: lordsmurf (04-25-2016)
  #15
04-09-2016, 03:22 PM
harky harky is offline
Free Member

Join Date: Apr 2016
Location: Singapore
Posts: 47
Thanked 0 Times in 0 Posts
Saw few post say that some DVD recorder have tbc... Maybe I should try that better? At the same time maybe can replace my old Phillip dvdr3750h

Quote:
Originally Posted by sanlyn View Post
Not "normal", as iot indicates bad line timing errors as well as poor VCR alignment. It is "normal" only in the way that the signal was interpreted by the capture equipment as having many playback errors.

Do this so call "tbc" works?
http://www.unterzuber.com/TBC.htmlThat's difficult to say how well it works because the examples shown in that article appear to be fairly clean tapes with minor, typical problems. The tbc you refer to is a pro shop unit that would cost well over 1200 dollars SGD. At that price you could buy better players and capture gear from anywhere in the world and still be able to pay for international shipping.

I see on the internet that there are VHS transfer services in Singapore, but the 5 that I checked seem to capture only to lossy MPG or h.264. That would work, of course, but it would be an obstacle to any further restoration or cleanup that you might want to do. For simple cut and join edits you would need smart-rendering software. For better cleanup you could decode the lossy transfers (if they are encoded at high bitrates) to lossless media and use Avisynth or VirtualDub to do some cleanup, then encode to the final format of your choice. That's the long way of going about it, but if you can find decent transfer prices you would at least have workable digital versions of your tapes. You might consider trying one old tape to see how the services handle it.

Digitalfaq's services can make proper, professional lossless digital captures. But of course they're in the U.S.
Reply With Quote
  #16
04-09-2016, 04:13 PM
sanlyn sanlyn is offline
Premium Member

Join Date: Aug 2009
Location: N. Carolina and NY, USA
Posts: 3,648
Thanked 1,198 Times in 959 Posts
Quote:
Originally Posted by harky View Post
Saw few post say that some DVD recorder have tbc... Maybe I should try that better? At the same time maybe can replace my old Phillip dvdr3750h
Good DVD recorders are difficult to find these days. But Panasonic makes decent DVD/BluRay recorders -- I don't know Singapore's policy toward those products.

Almost all DVD recorders have a minimal tbc that works during record. But they vary in quality and power. Newer recorders have weak tbc's. A few older DVD recorders can be used as a pass-thru device for tbc. Note that very few DVDR's can be used as pass-thru. Pass-thru means connecting the VCR to the DVDR's input, then connecting the DVDR's output directly to a capture device. In other words, the video is "played through" the DVDR. not recorded to it.

Below are links to 2 video samples about scanline errors. A VHS tape was captured with a non-tbc VCR, then captured again with the same VCR but using a DVDR as a pass-thru tbc.

- A1_Sample2_bad.mpg is the original rape played without tbc pass-thru. The lossless capture was later encoded to MPEG, with frame size slightly reduced so that TV overscan wouldn't hide some of the problems. The tape shows top-border flagging (skewing and bending), frame hopping, and other disturbances due to bad line timing within frames and poor frame-sync.
http://www.digitalfaq.com/forum/atta...sample2_badmpg

- B1_Sample2_fix.mpg is the tape played with a line tbc pass-thru device (an old Toshiba R-D2 made in 2003). The "fixed" sample shown is a first-stage test repair with only mild, basic denoising. It was captured again later with a better VCR and stronger DMR-ES15 pass-thru but I didn't make a new demo before returning tapes and the converted DVD to the owner.
http://www.digitalfaq.com/forum/atta...sample2_fixmpg

These examples were last posted in this forum 10 days ago.

The two legacy DVDRs that are recommended for tbc pass-thru are Panasonic DMR-ES10 and DMR-ES15. Here is a long discussion about using a DVDR for pass-thru: http://forum.videohelp.com/threads/3...hat-do-you-use.
Reply With Quote
The following users thank sanlyn for this useful post: lordsmurf (04-25-2016)
  #17
04-09-2016, 04:34 PM
harky harky is offline
Free Member

Join Date: Apr 2016
Location: Singapore
Posts: 47
Thanked 0 Times in 0 Posts
I try to find this in Singapore.. Lol

DVD recorder is getting lesser here too..
Reply With Quote
  #18
04-10-2016, 10:48 AM
msgohan msgohan is offline
Free Member

Join Date: Feb 2011
Location: Vancouver, Canada
Posts: 1,146
Thanked 257 Times in 221 Posts
Quote:
Originally Posted by harky View Post
Saw few post say that some DVD recorder have tbc... Maybe I should try that better? At the same time maybe can replace my old Phillip dvdr3750h
Do you mean DVDR3570H? Try it.

The Philips DVDR3475/3575/3576 do perform passthrough line TBC. Unfortunately they suffer from the Funai Flicker if the source is "overly-bright", necessitating a separate hardware proc amp.
Reply With Quote
The following users thank msgohan for this useful post: lordsmurf (04-25-2016), sanlyn (05-21-2016)
  #19
04-10-2016, 11:52 AM
harky harky is offline
Free Member

Join Date: Apr 2016
Location: Singapore
Posts: 47
Thanked 0 Times in 0 Posts
dvdr3750h not 3570

Quote:
Originally Posted by msgohan View Post
Do you mean DVDR3570H? Try it.

The Philips DVDR3475/3575/3576 do perform passthrough line TBC. Unfortunately they suffer from the Funai Flicker if the source is "overly-bright", necessitating a separate hardware proc amp.
Reply With Quote
  #20
04-10-2016, 01:04 PM
msgohan msgohan is offline
Free Member

Join Date: Feb 2011
Location: Vancouver, Canada
Posts: 1,146
Thanked 257 Times in 221 Posts
I can't find anything that indicates that model exists (all the Google results are random websites or forum posts that could easily be typos; no manuals or any listings on Philips' sites). Regardless, try it. Post a sample here if you can't tell whether it's working.
Reply With Quote
Reply




Similar Threads
Thread Thread Starter Forum Replies Last Post
Problem capturing NTSC format video cassette dudu2683 Capture, Record, Transfer 5 09-29-2013 11:17 PM
Advice on capturing PAL & NTSC VHS tapes Bilge Capture, Record, Transfer 25 11-11-2011 08:38 PM
Convert NTSC to PAL and back to NTSC ? admin Capture, Record, Transfer 0 07-24-2010 08:29 PM
Hi8 PAL to 24p NTSC glitching? satisfied_camel Capture, Record, Transfer 9 06-22-2010 03:51 AM
PAL vs NTSC, which one to use in my workflow? lordsmurf Project Planning, Workflows 0 03-25-2010 07:39 PM

Thread Tools




All times are GMT -5. The time now is 10:43 AM
