Hi

I need some help

I have a VCR tape that was filmed in 1988 using a HITACHI VK-C770 camera attached to Hitachi VT-7000E and Timer VT-TU70E (purchased in 1981) I had to use a external light source as the camera did not capture light well and it had to be hooked up to a TV to see what you were recording. The actual VHS footage is only 1 hour long and captured using PAN NVHS960B>>Svideo>>CAMCORDER>>iee1394>>PC>>WinDV

I have viewed the Raw DV on my Captured PC and its looks dark and there are chequered patterns in the bright areas, Ive posted 2 clips so that you can see what i mean

Ive installed AviSynth and Vdub, but no plugins as i dont know which ones i will need

I'm sure the 2 clips have other problems that im not aware off

Can the clip be restored in any way

Thanks


Attached Files
File Type: avi 1988 one.avi (27.04 MB, 69 downloads)
File Type: avi 1988 two.avi (27.61 MB, 36 downloads)
Reply With Quote
Someday, 12:01 PM
admin's Avatar
Ads / Sponsors

Join Date: ∞
Posts: 42
Thanks: ∞
Thanked 42 Times in 42 Posts
  #2
02-24-2014, 02:10 PM
premiumcapture premiumcapture is offline
Free Member

Join Date: Dec 2013
Location: Boston, MA
Posts: 585
Thanked 72 Times in 65 Posts
I wouldn't capture in DV if you can help it, will make any edits much easier
Reply With Quote
  #3
02-24-2014, 05:08 PM
volksjager volksjager is offline
Free Member

Join Date: Nov 2011
Posts: 1,027
Thanked 212 Times in 190 Posts
im assuming this is PAL from the use of the NV-HS960 deck
DV is actually acceptable in PAL land

what cam are you using as a DV converter?
Reply With Quote
  #4
02-24-2014, 06:02 PM
zack82 zack82 is offline
Free Member

Join Date: Feb 2014
Posts: 22
Thanked 0 Times in 0 Posts
Hi

Camcorder is UK PAL Panasonic NV GS200EB (3CCD) bought in 2004

Thanks
Reply With Quote
  #5
02-24-2014, 07:20 PM
premiumcapture premiumcapture is offline
Free Member

Join Date: Dec 2013
Location: Boston, MA
Posts: 585
Thanked 72 Times in 65 Posts
Hows this look?


Attached Files
File Type: mp4 part 2 ccd nv.mp4 (1.08 MB, 21 downloads)
Reply With Quote
The following users thank premiumcapture for this useful post: zack82 (02-27-2014)
  #6
02-24-2014, 10:47 PM
lordsmurf's Avatar
lordsmurf lordsmurf is offline
Site Staff | Video

Join Date: Dec 2002
Posts: 13,508
Thanked 2,449 Times in 2,081 Posts
Odd. The first clip was played with a quality Panasonic S-VHS VCR with TBC, using s-video ... yet had dot crawl. I can only remove some of it. And I'm not sure it actually dot crawl, because standard dot crawl noise removal methods have no effect. I tried several. Standard noise reduction (NR) methods were used in my sample clip.

I somewhat wonder if the DV converter caused the "dot crawl" error!


It has dropouts.

You must be logged in to view this content; either login or register for the forum. The attached screen shots, before/after images, photos and graphics are created/posted for the benefit of site members. And you are invited to join our digital media community.


And green chroma noise.
And chroma dropouts.
And just general analog grain noise.

Avisynth was first, then VirtualDub.

Code:
ffvideosource("C:\1988 one.avi")
ConvertToYV12
checkmate(thr=12, max=12, tthr2=10)
Deen() # remove edge noise
ConvertToYUY2
DePulse(h=100, l=1, d=15, debug=false)
DePulse(h=10, l=800, d=5, debug=false)
ChromaShift(C=-8, L=4)
DeGrainMedian(limitY=15,limitUV=7,mode=0, norow=true)
ConvertToYUY2
- Checkmate (the dot crawl filter) had minimal effect, but a small improvement was there, so I left it.
- Deen knocked out some small edge noise.
- The two DePulse filters each attack different dropouts -- one black, one white.
- The chroma was offset. It's back where it belong now.

The degrain filter helped with general noise and some more dot crawl. The side effect is softening -- remove more noise, remove more detail. So it's about as best as can be done. You can, of course, try more tweaks.

VirtualDub is used for the masking, chroma noise removal, and more mild NR.

Code:
VirtualDub.audio.SetSource(1);
VirtualDub.audio.SetMode(0);
VirtualDub.audio.SetInterleave(1,500,1,0,0);
VirtualDub.audio.SetClipMode(1,1);
VirtualDub.audio.SetConversion(0,0,0,0,0);
VirtualDub.audio.SetVolume();
VirtualDub.audio.SetCompression();
VirtualDub.audio.EnableFilterGraph(0);
VirtualDub.video.SetInputFormat(11);
VirtualDub.video.SetOutputFormat(11);
VirtualDub.video.SetMode(3);
VirtualDub.video.SetSmartRendering(0);
VirtualDub.video.SetPreserveEmptyFrames(0);
VirtualDub.video.SetFrameRate2(0,0,1);
VirtualDub.video.SetIVTC(0, 0, 0, 0);
VirtualDub.video.SetCompression();
VirtualDub.video.filters.Clear();
VirtualDub.video.filters.Add("dynamic noise reduction (MMX)");
VirtualDub.video.filters.instance[0].Config (12);
VirtualDub.video.filters.Add("Camcorder color denoise 1.6 MT");
VirtualDub.video.filters.instance[1].Config(100,1);
VirtualDub.video.filters.Add("resize");
VirtualDub.video.filters.instance[2].SetClipping(17,10,10,18);
VirtualDub.video.filters.instance[2].Config(100,100,1,4,3,1,720,576,4,3,1,4,1,0x000000);
VirtualDub.audio.filters.Clear();
It too hard to tell from a small clip if the NR is set too high (default), or should be removed entirely. Keep that in mind. Use judgment and see how it looks. You never wanted to overfilter!

The second clip had chroma noise and mild grain. That could be entirely done in VirtualDub.

I don't usually go into this much detail for Free Members, but like I to show off my dropout removal method.


Attached Files
File Type: mp4 zack82-1.mp4 (2.71 MB, 43 downloads)
File Type: avs zack82-1.avs (306 Bytes, 14 downloads)
File Type: vcf zack82-1.vcf (1.1 KB, 15 downloads)

- Did my advice help you? Then become a Premium Member and support this site.
- For sale in the marketplace: TBCs, workflows, capture cards, VCRs
Reply With Quote
The following users thank lordsmurf for this useful post: zack82 (02-27-2014)
  #7
02-27-2014, 01:13 PM
zack82 zack82 is offline
Free Member

Join Date: Feb 2014
Posts: 22
Thanked 0 Times in 0 Posts
Wow

Thanks for your Help premiumcapture and lordsmurf

Those uploads are much much better,cleaner looking

is there a script command i can add to 1988two.avi that makes the video a bit brighter
or should i leave it as it is

I'm tempted to add spline36resize(352,576) should i or would that look bad on a 1080p display

After using zack81.avs, Do i then goto File>>Run Script and choose zack82-1.vcf, to use both scripts on this video



thanks again
Reply With Quote
  #8
02-28-2014, 08:16 AM
premiumcapture premiumcapture is offline
Free Member

Join Date: Dec 2013
Location: Boston, MA
Posts: 585
Thanked 72 Times in 65 Posts
You can play with HSV in Virtualdub or Gradian Curves in RGB. The funny thing with camcorders is that many try to adjust to light levels on their own, which can create video that requires different amounts of brightness correction, so take it piece by piece.
Reply With Quote
The following users thank premiumcapture for this useful post: zack82 (02-28-2014)
  #9
02-28-2014, 08:20 AM
kpmedia's Avatar
kpmedia kpmedia is offline
Site Staff | Web Hosting, Photo

Join Date: Feb 2004
Posts: 4,311
Thanked 374 Times in 341 Posts
Video often appears lighter on TV. So if you make it look perfect on a non-calibrated professional monitor, it'll come out looking terrible when viewed on TV. Beware! This is a very common newbie mistake.

- Did my advice help you? Then become a Premium Member and support this site.
- Please Like Us on Facebook | Follow Us on Twitter

- Need a good web host? Ask me for help! Get the shared, VPS, semi-dedicated, cloud, or reseller you need.
Reply With Quote
The following users thank kpmedia for this useful post: zack82 (02-28-2014)
  #10
02-28-2014, 09:44 AM
premiumcapture premiumcapture is offline
Free Member

Join Date: Dec 2013
Location: Boston, MA
Posts: 585
Thanked 72 Times in 65 Posts
For those who use a tv as a monitor, this shouldnt be an issue. Computer screena also offer better color, so what you see may not be what you get in that sense either
Reply With Quote
The following users thank premiumcapture for this useful post: zack82 (02-28-2014)
  #11
03-04-2014, 01:17 PM
zack82 zack82 is offline
Free Member

Join Date: Feb 2014
Posts: 22
Thanked 0 Times in 0 Posts
Hi lordsmurf

Is there a plugin-in that ive not installed as i cant seem to get the .avs and .vcf script that you provided working

click on pics for larger version, Pics too large for forum

The .vcf plugin does not show up in the filters window and when loaded manually i get this error http://i61.tinypic.com/11iipkz.jpg

The .avs script throws up this error http://i61.tinypic.com/ne9vfl.jpg

Plugins installed http://i59.tinypic.com/207mhl1.jpg
Reply With Quote
  #12
03-17-2014, 04:23 PM
themaster1 themaster1 is offline
Free Member

Join Date: Feb 2011
Location: France
Posts: 497
Thanked 99 Times in 83 Posts
I had some fun trying various filters with this source, try this script this is the best i could do:
https://www.mediafire.com/?ep99gy1hvyu652m

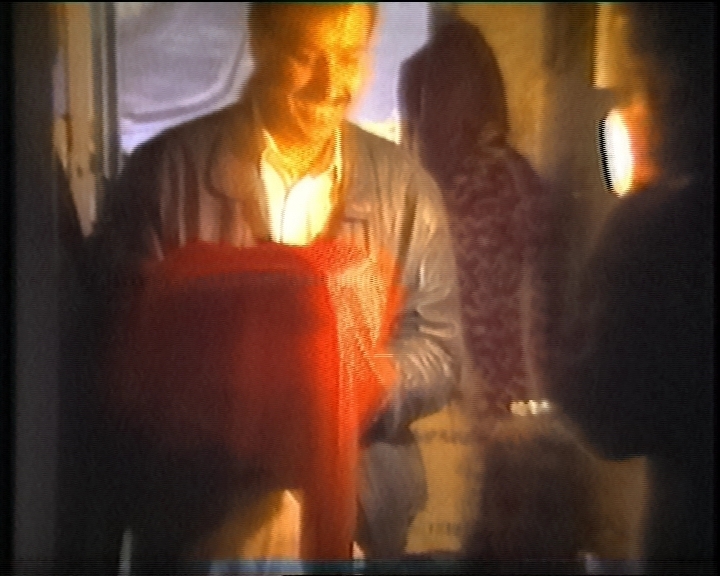

original:


processed:
Reply With Quote
The following users thank themaster1 for this useful post: latti (11-16-2014), zack82 (03-19-2014)
  #13
03-18-2014, 01:42 AM
premiumcapture premiumcapture is offline
Free Member

Join Date: Dec 2013
Location: Boston, MA
Posts: 585
Thanked 72 Times in 65 Posts
Dropout fix looks great! How did you do that?
Reply With Quote
The following users thank premiumcapture for this useful post: zack82 (03-19-2014)
  #14
03-18-2014, 01:52 AM
lordsmurf's Avatar
lordsmurf lordsmurf is offline
Site Staff | Video

Join Date: Dec 2002
Posts: 13,508
Thanked 2,449 Times in 2,081 Posts
Please attach images to the forum. http://www.digitalfaq.com/forum/news...ly-upload.html
All of the tinypic/etc images are broken and/or require unsafe JS for that site.

I'd love to help -- but you have to put the images here!

- Did my advice help you? Then become a Premium Member and support this site.
- For sale in the marketplace: TBCs, workflows, capture cards, VCRs
Reply With Quote
The following users thank lordsmurf for this useful post: zack82 (03-19-2014)
  #15
03-19-2014, 11:56 AM
zack82 zack82 is offline
Free Member

Join Date: Feb 2014
Posts: 22
Thanked 0 Times in 0 Posts
Hi

Many thanks to premiumcapture,lordsmurf and themaster1 for your efforts in trying to help me
I seem to be having some difficulties in trying to get your scripts (.vcf and .avs) to work

Im sure i have the necessary plugins installed but i keep getting errors

Attachement Picture 1 shows what plugins i have for Vdub

Attachement Picture 2 shows what plugins i have for AviSynth 2.5

Attachement Picture 3 shows what error i get when clicking on lordsmrufs .avs file

Attachement Picture 4 shows what error i get when clicking on lordsmrufs .vcf file

Attachement Picture 5 shows what error i get when clicking on themaster1 .avs file


Attached Images
File Type: jpg 1.jpg (24.6 KB, 15 downloads)
File Type: jpg 2.jpg (17.5 KB, 6 downloads)
File Type: jpg 3.jpg (15.7 KB, 7 downloads)
File Type: jpg 4.jpg (15.4 KB, 3 downloads)
File Type: jpg 5.jpg (16.1 KB, 6 downloads)
Attached Files
File Type: avs zack82-1.avs (302 Bytes, 4 downloads)
File Type: vcf zack82-1.vcf (1.1 KB, 4 downloads)
Reply With Quote
  #16
03-19-2014, 12:31 PM
premiumcapture premiumcapture is offline
Free Member

Join Date: Dec 2013
Location: Boston, MA
Posts: 585
Thanked 72 Times in 65 Posts
The jpegs are too big and I think the compression is making the text blurred out, try cropping out all the unnecessary space.

Open the two files with notepad (yes, notepad) and triple-check to see that you have all the filters on your computer. Once you are absolutely sure you have them, most likely its an issue of file location, but I am not good with avisynth so others might have better input.
Reply With Quote
The following users thank premiumcapture for this useful post: zack82 (03-19-2014)
  #17
03-19-2014, 02:16 PM
zack82 zack82 is offline
Free Member

Join Date: Feb 2014
Posts: 22
Thanked 0 Times in 0 Posts
Sorry

I have scaled them down, i only have MS Paint installed on my M90 notebook

forgot to mention the actual captured 1 hour DV file is now in C:/1989.avi

Ive made a copy as my orignal DV 1988.avi which is on my desktop, just want to make sure everything goes
ok before i work on the orignal


Attached Images
File Type: jpg 1.jpg (108.8 KB, 15 downloads)
File Type: jpg 2.jpg (60.4 KB, 8 downloads)
File Type: jpg 3.jpg (25.7 KB, 4 downloads)
File Type: jpg 4.jpg (24.0 KB, 7 downloads)
File Type: jpg 5.jpg (29.5 KB, 6 downloads)

Last edited by zack82; 03-19-2014 at 02:26 PM.
Reply With Quote
  #18
03-19-2014, 04:30 PM
themaster1 themaster1 is offline
Free Member

Join Date: Feb 2011
Location: France
Posts: 497
Thanked 99 Times in 83 Posts
Video processed:
https://mega.co.nz/#!ppxBDI6L!pxbCyb...tXfe_BvvxgKyHw
Reply With Quote
The following users thank themaster1 for this useful post: zack82 (04-06-2014)
  #19
04-29-2014, 08:35 PM
lordsmurf's Avatar
lordsmurf lordsmurf is offline
Site Staff | Video

Join Date: Dec 2002
Posts: 13,508
Thanked 2,449 Times in 2,081 Posts
Hi lordsmurf

Can you tell me if VDUB version 1.10.4 is ok as i cant get the lovely scripts you provided to work ive been trying for weeks with no luck

should i uninstall VDUB and AVS + plugins and start from scratch as i dont no what the problem is as i installed everything plugin out there

- Did my advice help you? Then become a Premium Member and support this site.
- For sale in the marketplace: TBCs, workflows, capture cards, VCRs
Reply With Quote
Reply




Similar Threads
Thread Thread Starter Forum Replies Last Post
Complete video/audio dropouts on Betamax tapes? moxiecat Restore, Filter, Improve Quality 13 05-24-2013 05:45 PM
VCR Help: Restoring EP VHS recordings to DVD imacoltfan Restore, Filter, Improve Quality 16 07-26-2012 05:33 AM
Preferred list of equipment to buy for transferring / restoring videos ? cc4npg Capture, Record, Transfer 1 02-07-2012 12:57 AM
How to fix VHS tape audio dropouts? ramrod Capture, Record, Transfer 7 11-17-2009 01:24 AM
Dropouts, Cleaning and New VCR mrwhitethc Restore, Filter, Improve Quality 1 07-26-2008 06:53 AM

Thread Tools




All times are GMT -5. The time now is 02:25 AM
