Hi Guys

Received the Desktop PC today and its purpose is only for VHS RAW capture.

Ive also received the card as well

The system is a Dell Vostro 200 (Intel Core 2 Duo E6550 @ 2.33GHz 2GB 160GB)

The card is a ALL-IN-WONDER X1800

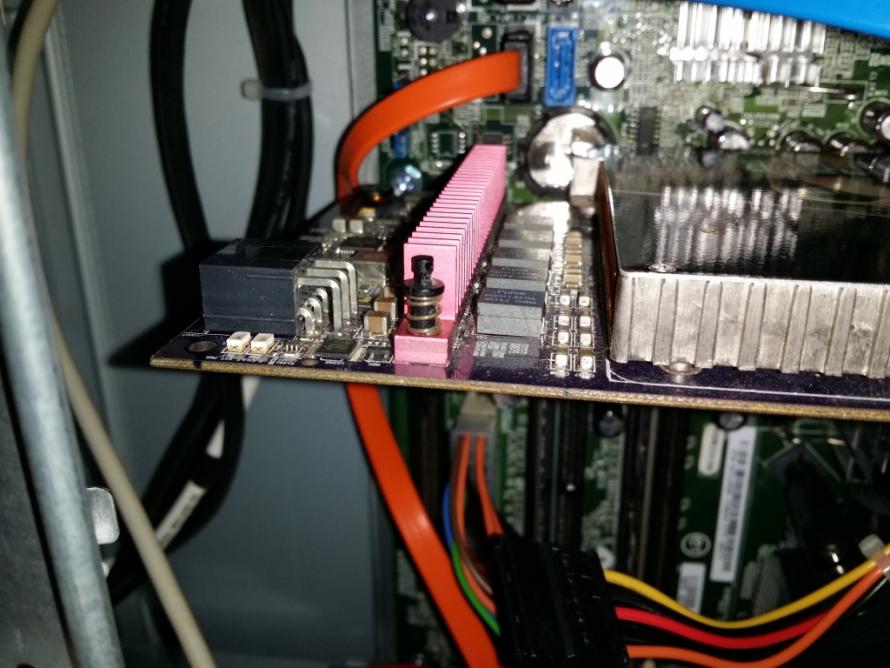

Ive posted a few photos as im worried by a couple of things

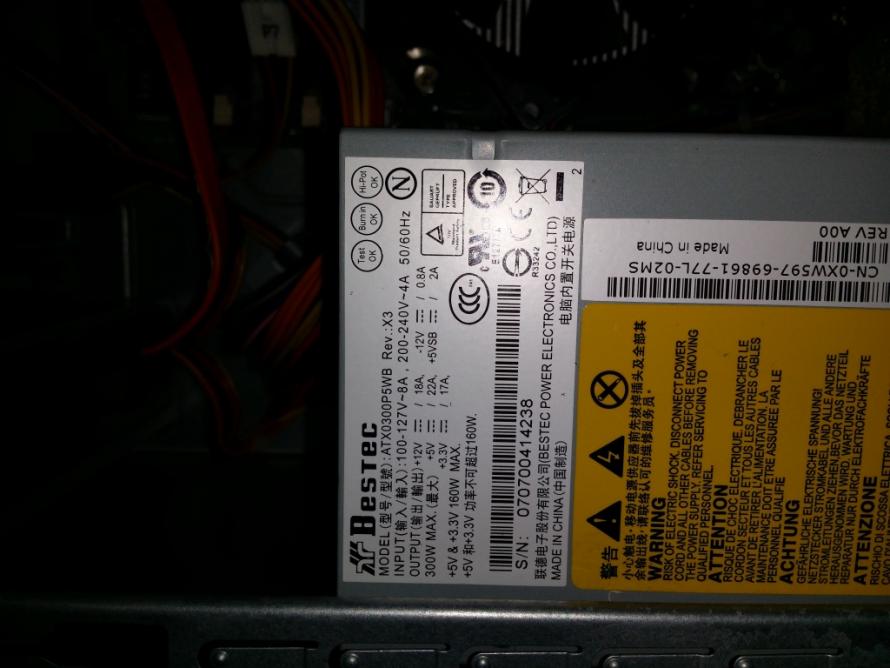

1) the Power supply that is installed in the PC...would this be ok, or is the X1800 a bit too powerful, and I need a larger watt power suplly

2) theres no molex connector i can see on this power supply (see pic) is this a problem or is there enough power through the PCi express port as im not sure what is needed.


.
.

.
.

Last edited by zack82; 12-19-2016 at 10:34 AM.
Reply With Quote
Someday, 12:01 PM
admin's Avatar
Ads / Sponsors

Join Date: ∞
Posts: 42
Thanks: ∞
Thanked 42 Times in 42 Posts
  #2
12-19-2016, 06:13 PM
sanlyn sanlyn is offline
Premium Member

Join Date: Aug 2009
Location: N. Carolina and NY, USA
Posts: 3,648
Thanked 1,248 Times in 970 Posts
You apparently have the mini-tower version of this Dell series, who power supply has no 6-pin PCIExpress power cable. Oddly, the smaller slim-tower model odes have one, but that won't help your situation. There are two solutions:

(a)
find an ATX power supply that does have the connector you need. Measure the dimensions of your current and very cheap $20-USD Bestec power supply and find a better ATX power supply that will fit in the space. BesTec is one of the cheapest OEM brands around (that's the way it goes with Dell PC's). There are other budget ATX supplies that are cleaner, better equipped, and not very expensive.

Or (b) I can't see that well from your photos, but if you have a free 4pin molex power cable available inside, try a 4-pin to 6-pin PCiExpress adapter. They are dirt cheap: https://www.amazon.co.uk/4-Pin-Molex...xpress+adapter.

I see only one hard drive. I'd try to find a 2nd hard drive for that PC. Capturing operations to the same hard drive that is home to your operating system can cause trouble, such as dropped frames or audio sync problems.

For power rating, I'd say 300 watts (if the BesTec actually outputs that figure) is barely enough for capture with that card. It would be better if you could find another mere 50 or 100 watts.
Reply With Quote
  #3
03-20-2017, 01:07 PM
zack82 zack82 is offline
Free Member

Join Date: Feb 2014
Posts: 22
Thanked 0 Times in 0 Posts
Hi

Sorry for the delay in responding as i was kinda busy over the last couple of months and didnt get time to capture anything.

Right Ok

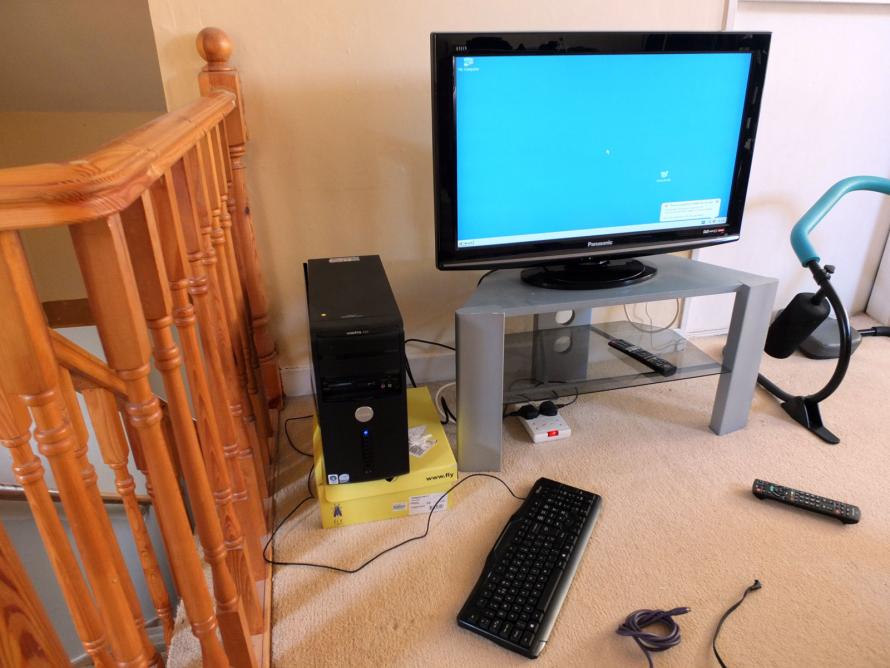

I sorted out my power supply problem, Installed XP and as you can see in the photo everything is ok

.



.


Now Ive realised just this week after buying I dont have this item.. below

.



.



Do I need it and if so where can I get one.

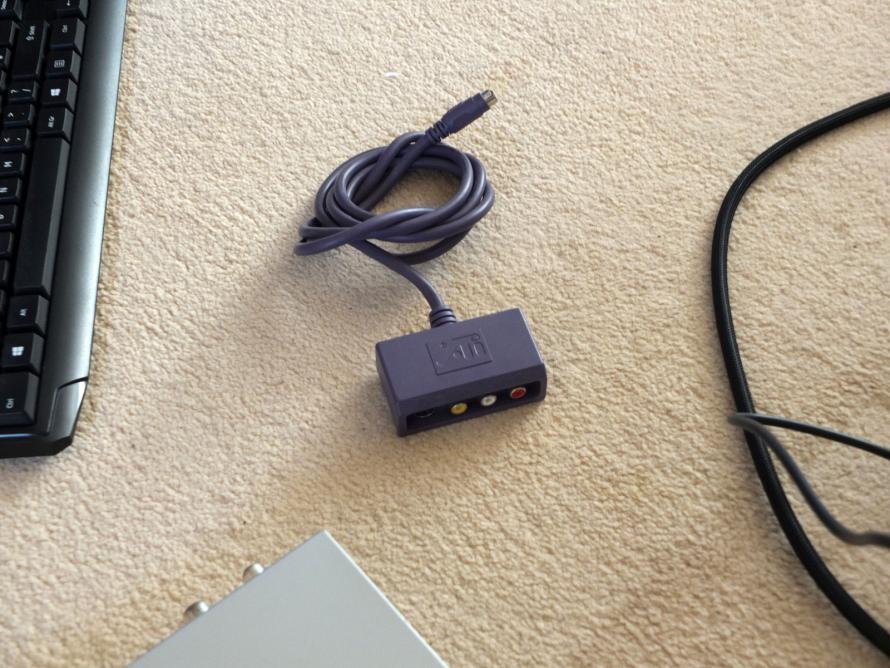

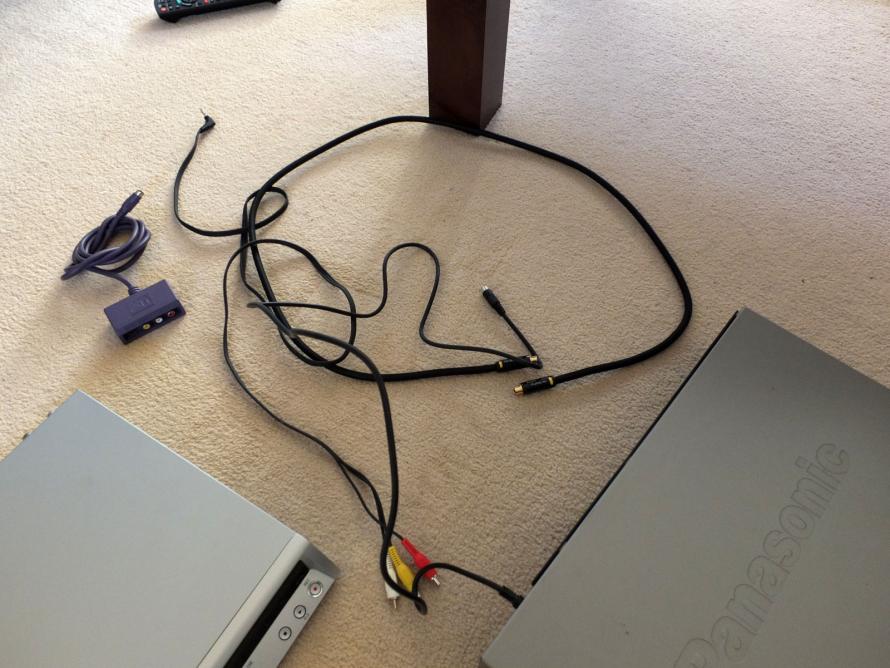

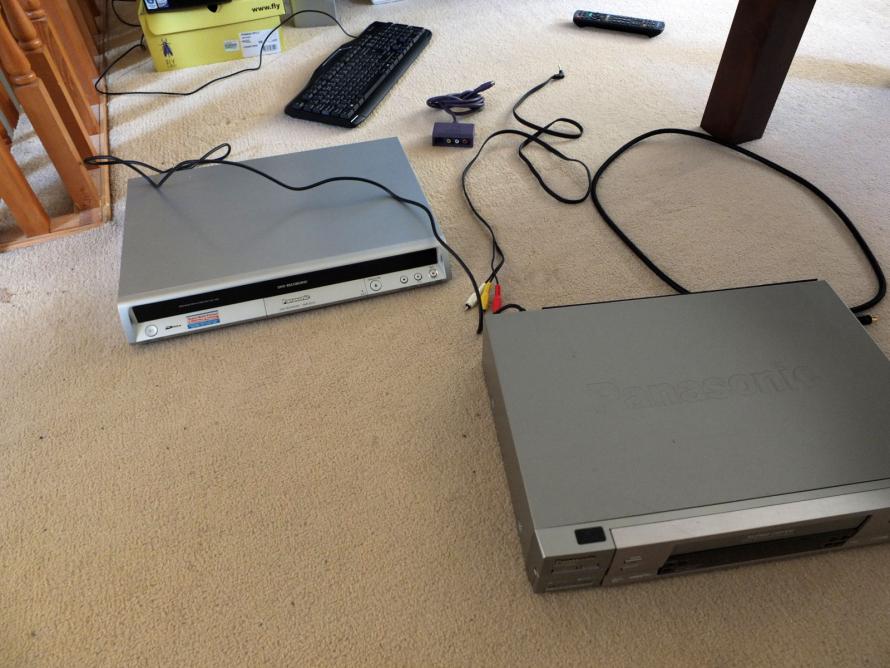

Also do I need 2 Svideo Cables to get VHS >> DVD RECORDER ...Then one for DVD RECORDER >> ATI SVIDEO ADAPTOR...Im a little bit unsure as what connects to what

.



.




.




.



.

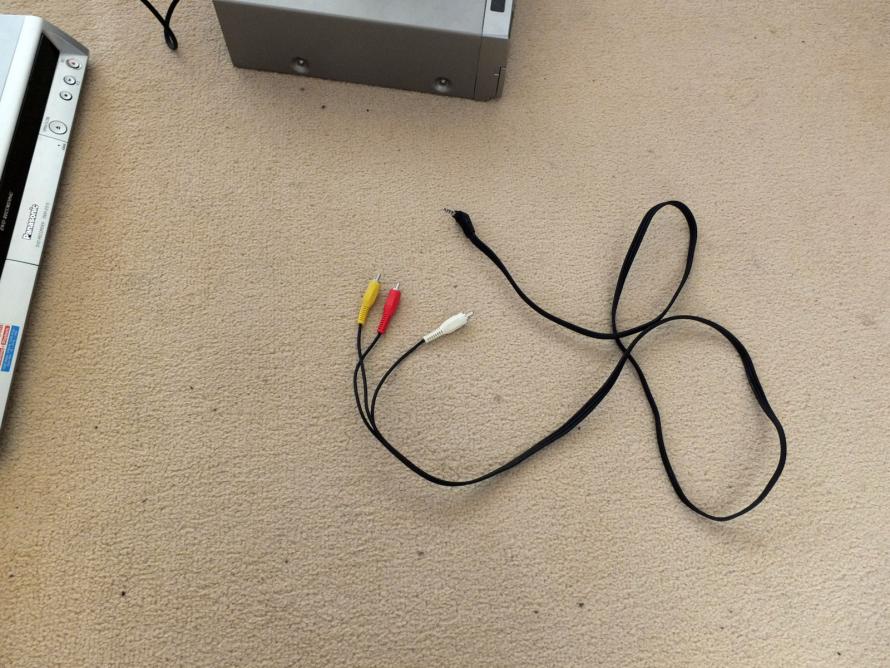

And a Double RCA Phono Cable to connect DVD RECORDER >> SVIDEO ADAPTOR

Thanks in Advance
Reply With Quote
  #4
03-20-2017, 01:22 PM
msgohan msgohan is offline
Free Member

Join Date: Feb 2011
Location: Vancouver, Canada
Posts: 1,221
Thanked 285 Times in 239 Posts
Quote:
Originally Posted by zack82 View Post

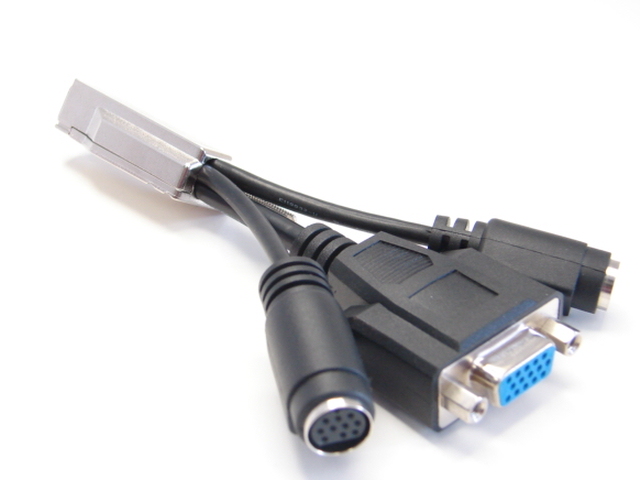

Now Ive realised just this week after buying I dont have this item.. below



Do I need it and if so where can I get one.
You're screwed, basically. They're like unobtainium if you bought the card without it. There have been threads in the past regarding this. That dongle is exclusive to the AIW "X" cards.

The part number for that "ATI AV Input" aka "AV I/O Hub Splitter for All-in-Wonder" is 6110020700G if you want to Google around and try to find someone that has it in stock. There is also 6110018300 which has 2x RF in place of VGA; presumably the rectangular side has the same connector.

A parts seller on NewEgg's marketplace appears to have one for sale for $22 at the moment as part of a bundle kit with the other cables and a manual: https://www.newegg.com/Product/Produ...9SIAA5J3SC1387

[EDIT: In fact, Googling the kit number proves far more useful at this time. ATI GC219RM-106 for the dongle or GC219RM for the whole kit. Just make sure you don't get confused and buy the wrong piece of the kit separately.]

Yes you need 2 S-Video cables to do the passthrough.

What's up with all the dots and multiple paragraph breaks in your post BTW? My poor scroll wheel.

Last edited by msgohan; 03-20-2017 at 01:44 PM.
Reply With Quote
The following users thank msgohan for this useful post: zack82 (09-24-2018)
  #5
09-24-2018, 07:59 AM
zack82 zack82 is offline
Free Member

Join Date: Feb 2014
Posts: 22
Thanked 0 Times in 0 Posts
Hi there

I know it's been a while..but you get so pre-occupied with other things in life that these projects go on hold for a while...

Anyway. .. product ATI GC219RM-106....would one ordered from the USA work with my system in the UK , as I can't seem to find a UK stockists of this product.

Thanks
Reply With Quote
  #6
09-24-2018, 09:13 AM
NJRoadfan NJRoadfan is offline
Premium Member

Join Date: Sep 2010
Posts: 1,126
Thanked 347 Times in 284 Posts

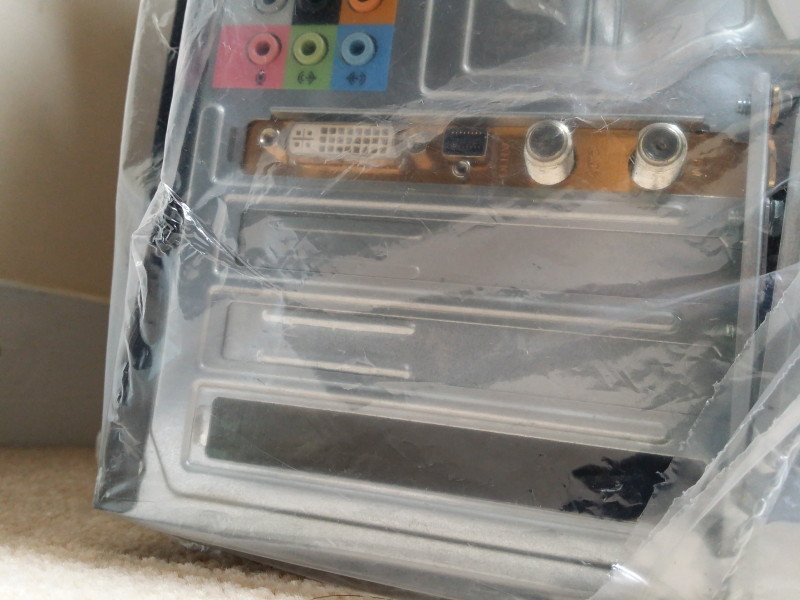

If your card looks like this (two coax OR Belling-Lee if PAL regions got that instead, DVI, and the weird cable plug) then it should work fine with the AV I/O-VGA splitter posted above:

https://www.newegg.com/Product/Produ...82E16814102642
Reply With Quote
The following users thank NJRoadfan for this useful post: zack82 (09-25-2018)
  #7
09-25-2018, 07:54 AM
zack82 zack82 is offline
Free Member

Join Date: Feb 2014
Posts: 22
Thanked 0 Times in 0 Posts
Yes

This is it
.



.

So I will purchase...thanks
Reply With Quote
