  #1
08-14-2005, 07:13 AM
Zyphon Zyphon is offline
Free Member

Join Date: Oct 2003
Location: London, England (UK)
Posts: 1,035
Thanks: 0
Thanked 0 Times in 0 Posts
@Anyone

I am trying to convert my Alien movies to KDVD and I wanted to get the resize parameters from FitCD.

I am not 100% sure how to use FitCD, My DVD source is PAL 720 x 576 and I wanted to resize to 704 x 576 using Lanczos resize.

In the Mpeg Resizing I selected 16 for both round to settings, see the pic below:



Are these settings correct?

I would appreciate any help and further info on how to get correct settings from FitCD to get my resize params.

Thanks in advance.
__________________
Regards.

Michael.
Reply With Quote
Someday, 12:01 PM
admin's Avatar
Site Staff / Ad Manager

Join Date: Dec 2002
Posts: 42
Thanks: ∞
Thanked 42 Times in 42 Posts
  #2
08-14-2005, 07:36 AM
Dialhot Dialhot is offline
Free Member

Join Date: May 2003
Posts: 10,463
Thanks: 0
Thanked 0 Times in 0 Posts
1/ In the present case this won't change anhything but in a general way, you can set the crop rounding to 2 or 4 and not 16. 16 must be kept for resize.

2/ I really doubt your source is fullscreen. So you must determine the top and bottom border that is in the source (using DGIndex, null transform filter in virtualdub or autocrop plugin in avisynth). Then put these two values (or 4 values, you can have also a little border on the right/left) into FitCD to have a correct crop/resize done on the real film area of your source, and not all the frame dimension.

This will also let you apply the filters only on that area and gain a lot of time. All depend on how your script is done. The case :
Code:
Mpeg2Source()
... filters ...
Crop/Resize
Borders
won't gain anything.
But if you do as a process myself :
Code:
Mpeg2Source()
Crop/Resize
... filters ...
Borders
You will gain a lot.
In the past, on the same encoding, CCE goes from 0.74x to 0.82x with that.
Reply With Quote
  #3
08-14-2005, 07:48 AM
Zyphon Zyphon is offline
Free Member

Join Date: Oct 2003
Location: London, England (UK)
Posts: 1,035
Thanks: 0
Thanked 0 Times in 0 Posts
Thanks for your help Phil, I really appreciate it.

Would be so kind to explain the params of Lanczos please.

Code:
LanczosResize(672,544,8,0,704,576)
I take it this the 672,544 and 704,576 is the targe res. However I dont understand the 8,0 params.

Out of interest on the back on my DVD box I have the following:

AR: 2.35:1 and 16:9 Widescreen. It is a PAL Region 2 DVD.

I don't know if that info offers any more help.

Thanks again Phil for your help in this matter.
__________________
Regards.

Michael.
Reply With Quote
  #4
08-14-2005, 08:07 AM
Zyphon Zyphon is offline
Free Member

Join Date: Oct 2003
Location: London, England (UK)
Posts: 1,035
Thanks: 0
Thanked 0 Times in 0 Posts
Hi Phil here are two settings from DGIndex, I selected clipping in DGIndex.

Here is the first one:


And the second:

Thanks to ImageShack for Free Image Hosting

With the bottom clipping. I click the move over the slider and then repeatedly hit the right arrow key. Every 4 taps of the righ arrow cursor key results in the value of the clip to increase by 8.

So my question is am I better off going with the first picture values possible cutting some of the bottom of the movie slightly or go with the second picture and leave the small black bar at the bottom?
__________________
Regards.

Michael.
Reply With Quote
  #5
08-14-2005, 08:19 AM
Dialhot Dialhot is offline
Free Member

Join Date: May 2003
Posts: 10,463
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by Zyphon
Code:
LanczosResize(672,544,8,0,704,576)
I take it this the 672,544 and 704,576 is the targe res. However I dont understand the 8,0 params.
You take (crop) a 704x576 rectangle out of a 720x576 one. For that you have to cut 16 pixels so you have 16 position where you can start to cut. You can for instance takes the pixels from 0 to 703, or 1 to 704, or 2 to 705... The (8,0) is just to say that you want to take the pixels from 8 to 712 (in other words, you cut 8 pixels on the left, and 8 on the right).

Quote:
AR: 2.35:1 and 16:9 Widescreen. It is a PAL Region 2 DVD.

I don't know if that info offers any more help.
2.35 _means that you will have a border near 104 pixels in top and bottom ! (or 80 because the movie is anamorphic).
Reply With Quote
  #6
08-14-2005, 08:24 AM
Dialhot Dialhot is offline
Free Member

Join Date: May 2003
Posts: 10,463
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by Zyphon
So my question is am I better off going with the first picture values possible cutting some of the bottom of the movie slightly or go with the second picture and leave the small black bar at the bottom?
You simply see a limitation of DGIndex that made me drop this solution. I now use Autocrop with a simple script like this :
Quote:
Mpeg2Source(...)
Autocrop()
This will give you visually the left and top border and thhe height and width to crop (so you can determine the right/bottom border). There is no round to 8 like in DGIndex.
(note: be carefull, Autocrop always gives a left border of 2 pixels even if there is not. But this can be seen easily if you look closer at your sceen).

Else, with DGIndex what I do generally is to take the situation that is the "less worse". I mean if I have to choose between cutting 3 pixels or letting a 5 pixels border, I choose to cut. But if the choice is between cutting 7 pixels or having a 1 pixel border, than I keep the border.

EDIT: I thought you won't do Alien3
Reply With Quote
  #7
08-14-2005, 08:57 AM
Zyphon Zyphon is offline
Free Member

Join Date: Oct 2003
Location: London, England (UK)
Posts: 1,035
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by Dialhot
EDIT: I thought you won't do Alien3
Lol , I wanted to do some tests to see how good AutoGK was last week and Alien3 just happened to be the first DVD out of the boxset that I picked up and seeing it was still on my HDD from when I ripped it last week I thought I would run a couple of tests on it before wiping it and ripping the other 3 movies.

Thanks for the further info Phil, is I have just downloaded the Autocrop.dll from AviSynth site and I shall give that a try.

Again thanks again Phil for taking the time to explain to me the art of clipping and cropping.

I very much appreciate it.
__________________
Regards.

Michael.
Reply With Quote
  #8
08-14-2005, 09:11 AM
Zyphon Zyphon is offline
Free Member

Join Date: Oct 2003
Location: London, England (UK)
Posts: 1,035
Thanks: 0
Thanked 0 Times in 0 Posts
Thank you Phil for bringing to light for me this tool Autocrop it is very neat.

Below is a test script that I did with it using a very simple script as you suggested:
Code:
# -= AviSynth v2.5.5.0 script by FitCD v1.2.4 =-
LoadPlugin("F:\Program Files\DIKO\avisynth plugins\MPEG2Dec3.dll")
LoadPlugin("F:\Program Files\DIKO\avisynth plugins\AutoCrop.dll")
Mpeg2Source("G:\MyMovies\Conversions\Alien3.d2v")
Autocrop()

Thanks to ImageShack for Free Image Hosting

You say that Autocrop will give always give a left border of 2 pixels. In my case it is 10, should I subtract 2 from that to make it 8?

EDIT: The four crop settings values you get at the end, do you enter these for Lanczor Resize?

EDIT2: I can see on the right hand side cropping that Ripley's glove is overlapping the cropline and slightly can been seen on the other side of the line, is this just me? Can it be ignored?

Thanks Phil.
__________________
Regards.

Michael.
Reply With Quote
  #9
08-14-2005, 09:41 AM
incredible incredible is offline
Free Member

Join Date: May 2003
Location: Germany
Posts: 3,189
Thanks: 0
Thanked 0 Times in 0 Posts
Send a message via ICQ to incredible

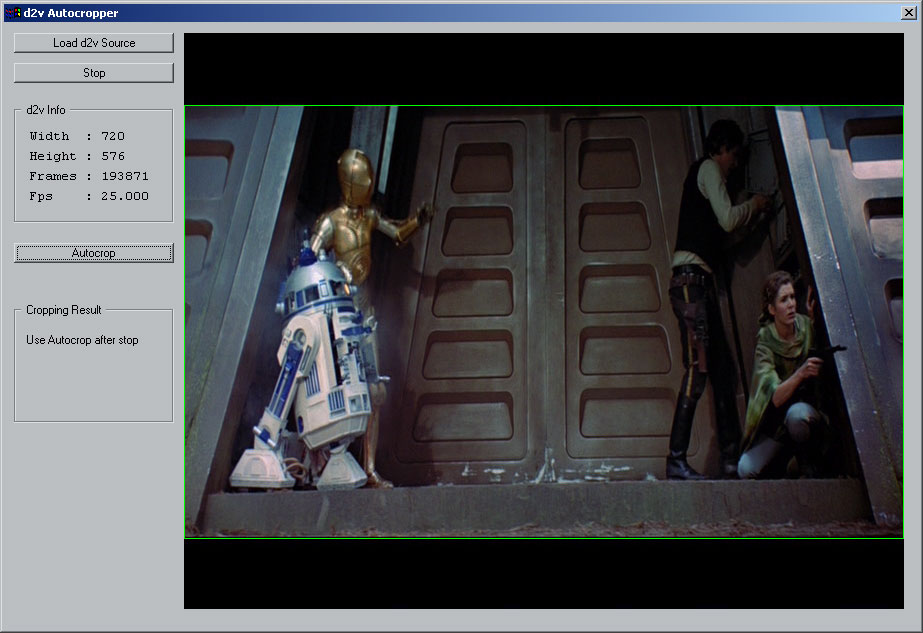

Or use my little tool I wrote for displaying and cropping d2v contend out of DgIndex (not DVD2AVI!). Its part of a new Video Appl. Im writing. I quickly added for your purpose a little result TextFrame to show the crop results and compiled it again.

It Autocrops using Mod2.
A copy of DgDecode.dll has to be in the same Folder as this appl.

http://home.arcor.de/packshot/dgdecodeplayback.exe

The movie automatically starts, press stop and hit Autocrop.

Reply With Quote
  #10
08-14-2005, 10:22 AM
kwag kwag is offline
Free Member

Join Date: Apr 2002
Location: Puerto Rico, USA
Posts: 13,537
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by incredible
Or use my little tool I wrote for displaying and cropping d2v
Cool Inc

-kwag
Reply With Quote
  #11
08-14-2005, 10:51 AM
Zyphon Zyphon is offline
Free Member

Join Date: Oct 2003
Location: London, England (UK)
Posts: 1,035
Thanks: 0
Thanked 0 Times in 0 Posts
@incredible

Andrej you are a lifesaveer! Thank you.

Was this written using PureBasic?

Looks really cool, thanks buddy I shall download it and run some tests now.
__________________
Regards.

Michael.
Reply With Quote
  #12
08-14-2005, 10:52 AM
incredible incredible is offline
Free Member

Join Date: May 2003
Location: Germany
Posts: 3,189
Thanks: 0
Thanked 0 Times in 0 Posts
Send a message via ICQ to incredible
Quote:
Originally Posted by Zyphon
Was this written using PureBasic?
Yes

Quote:
Looks really cool, thanks buddy I shall download it and run some tests now.
Its in mega Beta State and just testet on 3-4 diff Movies.

Reply With Quote
  #13
08-14-2005, 11:18 AM
Dialhot Dialhot is offline
Free Member

Join Date: May 2003
Posts: 10,463
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by Zyphon
You say that Autocrop will give always give a left border of 2 pixels. In my case it is 10, should I subtract 2 from that to make it 8?
You answered yourself in the following lines :
[/quote]EDIT2: I can see on the right hand side cropping that Ripley's glove is overlapping the cropline and slightly can been seen on the other side of the line, is this just me? Can it be ignored?[/quote]
As you can see, autocrop seems to have the bad habit to do a 2 pixel error on right - left (it does not suffer abotu that for top/bottom).

Quote:
EDIT: The four crop settings values you get at the end, do you enter these for Lanczor Resize?
No, I prefer to let FitCD giving me correct values that take in account the diff A/R of the source and the target I use. ANd also because I use an overscan that autocrop can't compute for you.

@Inc
I will try your app. It is nice.
Reply With Quote
  #14
08-14-2005, 12:09 PM
Zyphon Zyphon is offline
Free Member

Join Date: Oct 2003
Location: London, England (UK)
Posts: 1,035
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by incredible
Quote:
Originally Posted by Zyphon
Was this written using PureBasic?
Yes
Cool.

Quote:
Originally Posted by incredible
Quote:
Originally Posted by Zyphon
Looks really cool, thanks buddy I shall download it and run some tests now.
Its in mega Beta State and just testet on 3-4 diff Movies.

Still it is still looking good, look forward to the updates this tool looks very promising.
__________________
Regards.

Michael.
Reply With Quote
  #15
08-14-2005, 12:33 PM
Zyphon Zyphon is offline
Free Member

Join Date: Oct 2003
Location: London, England (UK)
Posts: 1,035
Thanks: 0
Thanked 0 Times in 0 Posts
@Incredible

Unfortunately when I try to enter a .d2v file made with DGIndex 1.4.0 Final, your tool crashes and I then quits.

I am at a loss what could cause this, My OS is XP Pro SP1.

@Dialhot

Phil sorry to carry on, just a liitle more advice needed. What values exactly from Autocrop do I need to input into FitCD?

Also what should I round to? Mod 2,4,8 or 16?

I like to use overscan=2 also. In my destination, the round to is set to32 for the width but the hight is set to 16 in the slider bar as seen in the first picture.

I am really confused with the round to and which mod to use. Sorry for the dumb questions but I am still such a noob when it comes to using FitCD.
__________________
Regards.

Michael.
Reply With Quote
  #16
08-14-2005, 12:46 PM
Zyphon Zyphon is offline
Free Member

Join Date: Oct 2003
Location: London, England (UK)
Posts: 1,035
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by Zyphon
@Incredible

Unfortunately when I try to enter a .d2v file made with DGIndex 1.4.0 Final, your tool crashes and I then quits.

I am at a loss what could cause this, My OS is XP Pro SP1.


I just realised after reading your post again, I forgot to put the DGDecode.dll into the same directory as your tool. My so dumb!!

Now it works perfectly, now please excuse me while I go find my brain.
__________________
Regards.

Michael.
Reply With Quote
  #17
08-14-2005, 12:55 PM
Zyphon Zyphon is offline
Free Member

Join Date: Oct 2003
Location: London, England (UK)
Posts: 1,035
Thanks: 0
Thanked 0 Times in 0 Posts
Here are the crop results from your tool Andrej.


Thanks to ImageShack for Free Image Hosting

Mind you if you look at the bottom crop line it overlaps the credits slightly.

A very good tool btw though, I hope for future releases there may be a slider bar so you can see how the crop lines look at mid point of the movie.

Great work Andrej.

Now with the settings from your tool, I have put these into FitCD:


Thanks to ImageShack for Free Image Hosting

I still don't get the round to options though and would appreciate a tip in the right direction.

Thanks in advance.
__________________
Regards.

Michael.
Reply With Quote
  #18
08-14-2005, 01:04 PM
Dialhot Dialhot is offline
Free Member

Join Date: May 2003
Posts: 10,463
Thanks: 0
Thanked 0 Times in 0 Posts
Okay, so I resume all the informations you gave :
- Autocrop gives left = 10, top = 72, width = 704, height = 430
- Autocrop is giving a two pixel too big border on the right side. So correct width should be 706.
- you want a oversan about two and a dest res to 704*576.

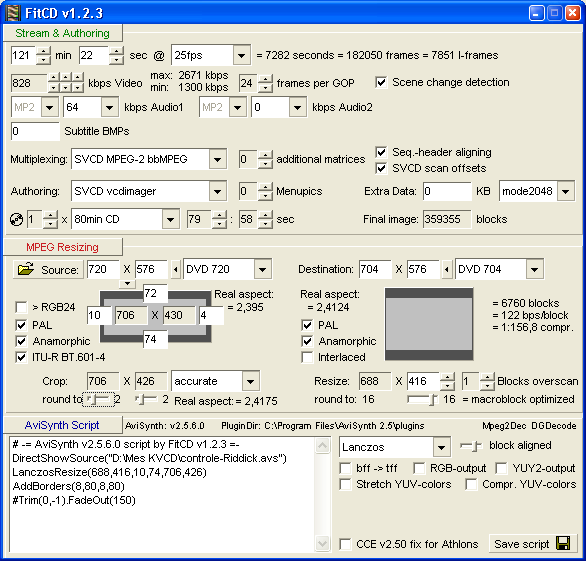

This is how I set my Fitcd :

As you can see, this will crop too much the source (694 x 430). In this situation I will go for an oversan of 1 (or 3) to have a lesser cropping (706 x 426) :
Reply With Quote
  #19
08-14-2005, 01:35 PM
Zyphon Zyphon is offline
Free Member

Join Date: Oct 2003
Location: London, England (UK)
Posts: 1,035
Thanks: 0
Thanked 0 Times in 0 Posts
@Dialhot

Thank you Phil, I get the same results by changing to overscan=1.

Is the round to 2 & 2 ok for the Source?

Also have you tried unticking the Anamorphic, you get huge black borders I take it this will mess up the AR?

Thanks as always Phil for your very insightful informationa and help it is greatly appreciated.
__________________
Regards.

Michael.
Reply With Quote
  #20
08-14-2005, 01:45 PM
Dialhot Dialhot is offline
Free Member

Join Date: May 2003
Posts: 10,463
Thanks: 0
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by Zyphon
Is the round to 2 & 2 ok for the Source?
Yes it is. It can be refused by some filters anyway (round to 4 in this case). And if I'm not wrong, if your source is interlaced then 4 is the minimum also (to be confirmed).

Quote:
Also have you tried unticking the Anamorphic, you get huge black borders I take it this will mess up the AR?
Yes if you did it for the source (you must check the box according to your source parameters). But for target, it's your own choice. FitCD will just compute correct values according to what you choosed.
Reply With Quote
Reply




Similar Threads
Thread Thread Starter Forum Replies Last Post
Avisynth: Lanczos Vs Spline resizers supermule Avisynth Scripting 10 04-26-2007 03:26 AM
Avisynth: Gaussian Vs Lanczos4 Vs Lanczos Resize supermule Avisynth Scripting 3 10-13-2005 10:21 AM
Avisynth: Bilinear Vs Bicubic Vs Lanczos? Anonymous Avisynth Scripting 4 08-18-2003 08:17 AM
Avisynth: How come not many people use Lanczos resizing? audi2honda Avisynth Scripting 3 06-16-2003 02:16 PM
KVCD: Help with resize/borders in fitcd musicthebee Video Encoding and Conversion 7 05-30-2002 07:50 PM

Thread Tools




All times are GMT -5. The time now is 06:46 AM  —  vBulletin © Jelsoft Enterprises Ltd
