06-12-2013, 04:18 PM
rumburaski rumburaski is offline
Free Member
Join Date: Feb 2013
Posts: 26
Thanked 0 Times in 0 Posts

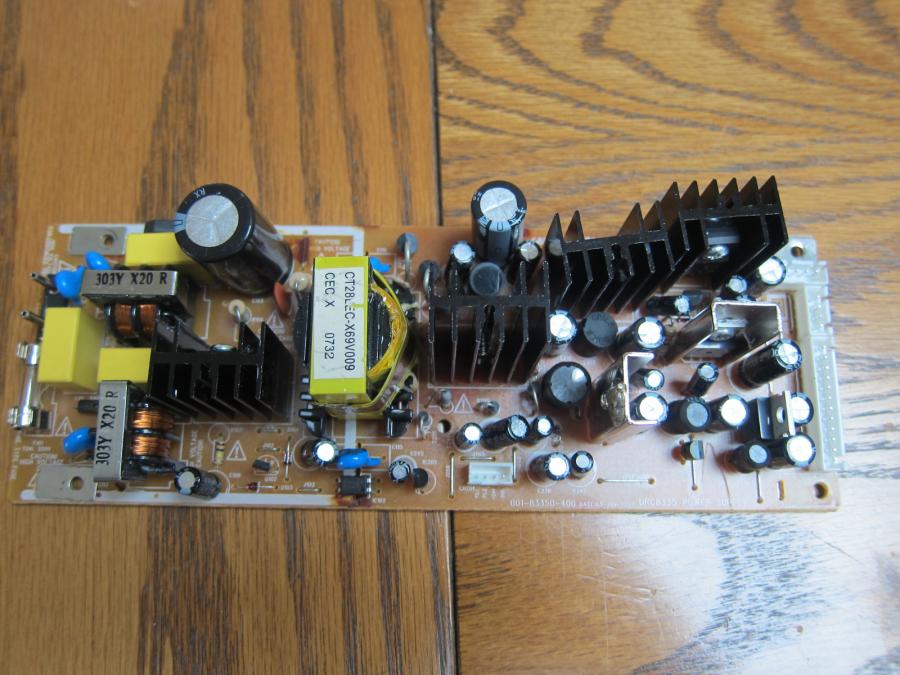

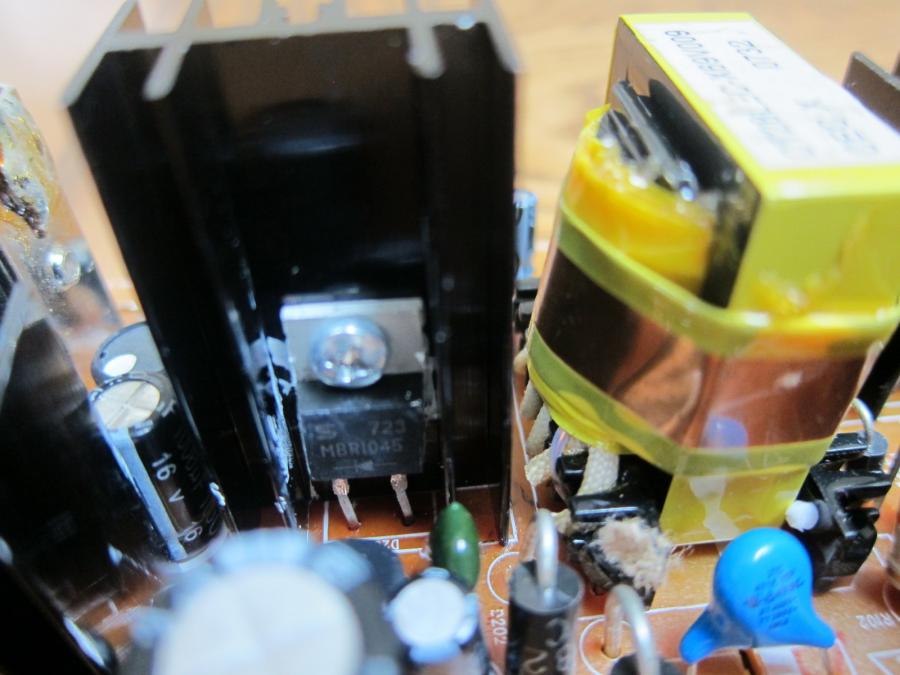

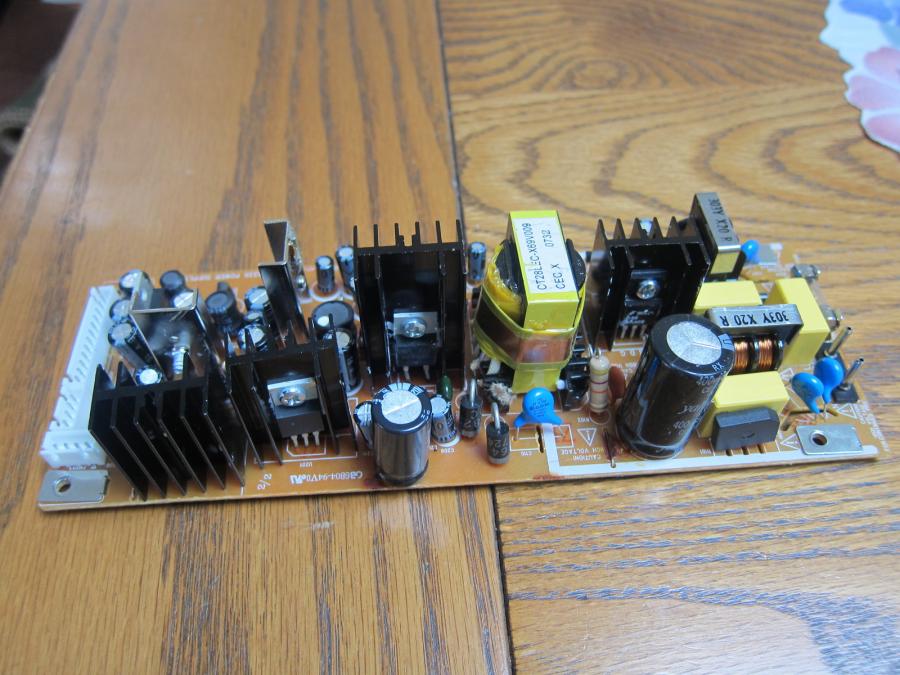

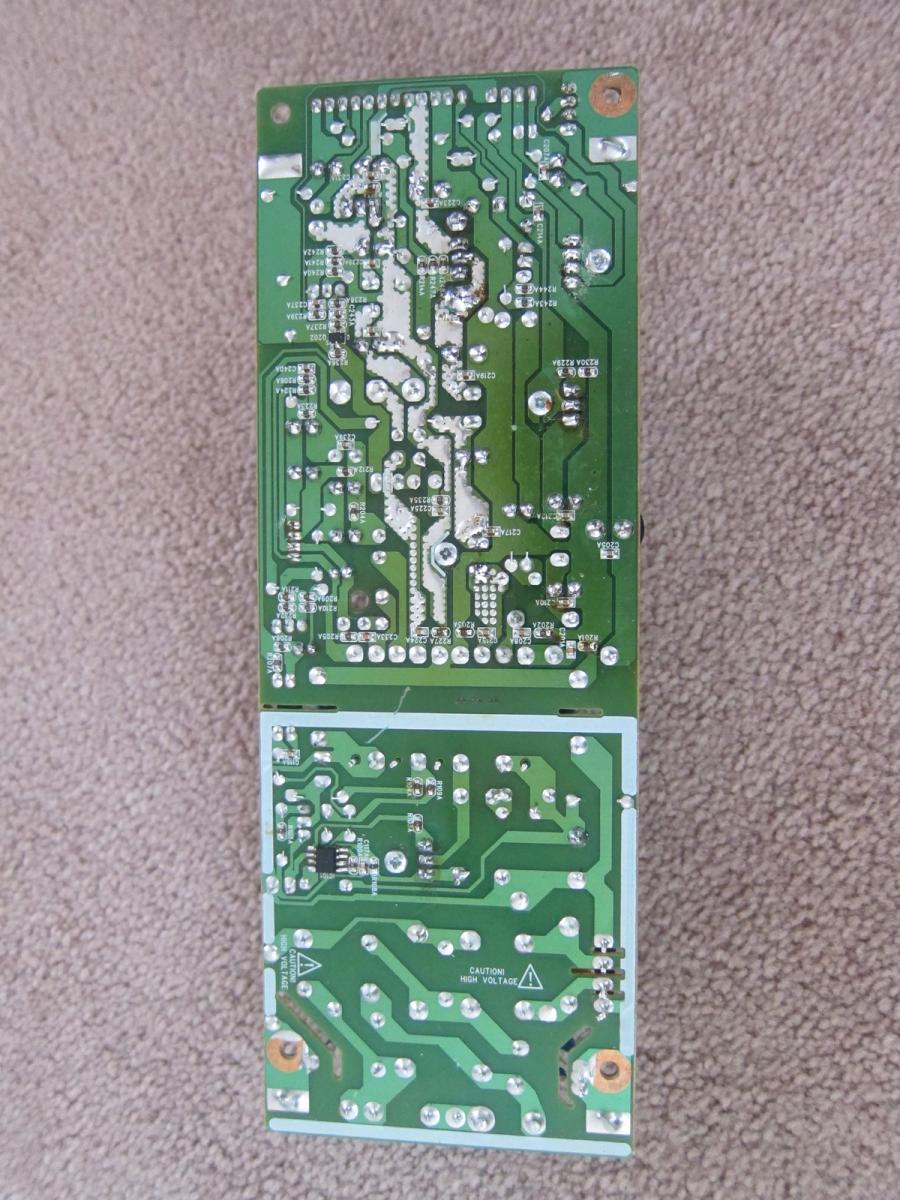

I have replaced a couple of blown electrolytics including the 2200uf one. Now the combo runs but with issues. For example, the power supply runs scorching hot. The hottest spot being the rectifier diode mbr on the heat sink, just behind the 2200uf electrolytic that bursted (not shown, already replaced). Also the unit continues to display "finalizing" on the screen after dvd burning, even if the finalized disc is ok. To get rid of the "finalize" i have to turn the unit off and let it cool for five minutes. It is challenging for me because i don't have a schematic. Here are some pics.

Reply With Quote
Someday, 12:01 PM
admin's Avatar
Ads / Sponsors
Join Date: ∞
Posts: 42
Thanks: ∞
Thanked 42 Times in 42 Posts
06-13-2013, 03:08 PM
lordsmurf's Avatar
lordsmurf lordsmurf is offline
Site Staff | Video
Join Date: Dec 2002
Posts: 13,787
Thanked 2,496 Times in 2,122 Posts
I think heat is usually caused by underpowered caps. Even if rated high, they can still be too weak.
Sometimes the PCB is just rated too low, so bump it up.

- Did my advice help you? Then become a Premium Member and support this site.
- For sale in the marketplace: TBCs, workflows, capture cards, VCRs
Reply With Quote
06-13-2013, 06:15 PM
rumburaski rumburaski is offline
Free Member
Join Date: Feb 2013
Posts: 26
Thanked 0 Times in 0 Posts
How do i bump up. Can you tell me more?
