Hi everyone,

I am transferring old Betamax tapes (1981-1989). I have noticed a build-up of static electricity while playing back the oldest tapes, leading to excessive bullet noise. Newer tapes don't seem to have this problem. At the beginning of a tape, little bullet noise is visible. As the tape progresses, bullet noise increases.

I have read this is a known issue in the SL-HF950: http://www.palsite.com/950tech.html#static. Sony supplied an earth kit to solve this issue, but it's no longer available. Does anyone have any further information about this so that I can replicate this solution?

As an alternative, would it help to put old tape into a new cassette housing? Newer Betamax tapes from Sony are grey rather than black. Does this help to avoid static build-up?

Many thanks in advance for any help!

Thanks,
David
Reply With Quote
Someday, 12:01 PM
admin's Avatar
Ads / Sponsors

Join Date: ∞
Posts: 42
Thanks: ∞
Thanked 42 Times in 42 Posts
  #2
02-11-2015, 10:33 PM
lordsmurf's Avatar
lordsmurf lordsmurf is offline
Site Staff | Video

Join Date: Dec 2002
Posts: 12,154
Thanked 2,244 Times in 1,927 Posts
I doubt changing the cassette housing would do much.

Can we get a screen capture of what you mean by "bullet noise"?

It almost sounds like a "comet" issue (magnetic dropouts). If so, then they may not be correctable. However, there are several methods for restoration, to remove most/all of the dropouts. This has been discussed many times on the forum, especially in 2013-2014.

- Did my advice help you? Then become a Premium Member and support this site.
- For sale in the marketplace: TBCs, workflows, capture cards, VCRs
Reply With Quote
The following users thank lordsmurf for this useful post: davidvankemenade (03-01-2015)
  #3
03-01-2015, 09:29 AM
davidvankemenade davidvankemenade is offline
Free Member

Join Date: May 2014
Posts: 2
Thanked 0 Times in 0 Posts
Hi lordsmurf, thanks for your reply. Sorry for following up so late.

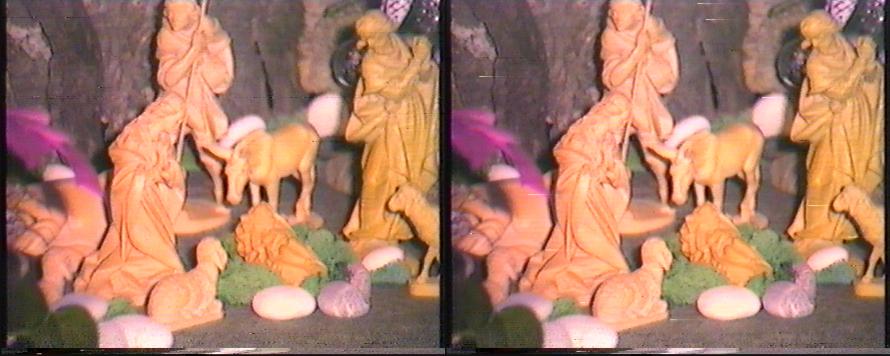

Below is a screen capture of the noise:



The left-hand side is a frame from the first time I did a capture. I played back the first 2 minutes of this time a few times consecutively. On the right-hand side you see the same frame from the fourth capture. I believe the noise gets worse with time.

I've also posted a video of the capture with the SL-HF950 here.

For comparison, I've posted a video of the same segment captured with an SL-F35.

It seems the white noise areas in the SL-HF950 capture are not affected in the SL-F35 capture. The SL-F35 instead introduces black stripes at high-contrast transitions.

What should I do to play back these tapes with minimal noise?
Reply With Quote
  #4
03-01-2015, 03:57 PM
NJRoadfan NJRoadfan is offline
Premium Member

Join Date: Sep 2010
Posts: 1,135
Thanked 351 Times in 287 Posts
Take a look here: http://www.mrbetamax.com/GroundingRepair.htm

Clicking on the photo shows the "repair kit". Basically grounds the whole drum assembly.
Reply With Quote
