Avisynth and handbrake don't deinterlace in the same way. Each uses different methods. It would be useful to have MediaInfo data on each output file. If some form of pulldown is used in the original video, QTGMC is inappropriate.

[quote=pinheadlarry;35357]Right now i'm only using the TBC that comes with the JVC SR V10u. It works for most tapes, but a lot of tapes that are in 'poor' condition it doesn't help much. If i turn off the TBC, it stabilizes the image but about 20px of the top image is useless due to 'warping'? i'm not sure of the correct term for this.[\quote]The term is tearing, or the better term is flagging. If the TBC is turned off and you have flagging, then then the player is not "stabilizing" the image.
Reply With Quote
Someday, 12:01 PM
admin's Avatar
Ads / Sponsors

Join Date: ∞
Posts: 42
Thanks: ∞
Thanked 42 Times in 42 Posts
  #22
12-09-2014, 09:28 PM
pinheadlarry pinheadlarry is offline
Invalid Email / Banned / Spammer

Join Date: Jul 2014
Posts: 76
Thanked 0 Times in 0 Posts
AviSynth Script through VirtualDub (Audio Problems)

Code:
General
Complete name                            : /Users/sean/Documents/capture card tests/Hoax5-Script.avi
Format                                   : AVI
Format/Info                              : Audio Video Interleave
Format profile                           : OpenDML
File size                                : 13.6 GiB
Duration                                 : 53mn 48s
Overall bit rate                         : 36.2 Mbps
Writing library                          : VirtualDub build 35491/release

Video
ID                                       : 0
Format                                   : Lagarith
Codec ID                                 : LAGS
Duration                                 : 53mn 48s
Bit rate                                 : 34.8 Mbps
Width                                    : 640 pixels
Height                                   : 480 pixels
Display aspect ratio                     : 4:3
Frame rate                               : 29.970 fps
Color space                              : YUV
Chroma subsampling                       : 4:2:0
Bit depth                                : 8 bits
Bits/(Pixel*Frame)                       : 3.782
Stream size                              : 13.1 GiB (96%)

Audio
ID                                       : 1
Format                                   : PCM
Format settings, Endianness              : Little
Format settings, Sign                    : Signed
Codec ID                                 : 1
Duration                                 : 53mn 48s
Bit rate mode                            : Constant
Bit rate                                 : 1 411.2 Kbps
Channel(s)                               : 2 channels
Sampling rate                            : 44.1 KHz
Bit depth                                : 16 bits
Stream size                              : 543 MiB (4%)
Alignment                                : Aligned on interleaves
Interleave, duration                     : 33 ms (1.00 video frame)
Interleave, preload duration             : 500 ms


Handbrake Deinterlace (No Audio Problems)


Code:
General
Complete name                            : /Users/sean/Documents/capture card tests/Hoax5-Handbrake.mp4
Format                                   : MPEG-4
Format profile                           : Base Media / Version 2
Codec ID                                 : mp42
File size                                : 2.84 GiB
Duration                                 : 53mn 56s
Overall bit rate mode                    : Variable
Overall bit rate                         : 7 534 Kbps
Encoded date                             : UTC 2014-12-02 21:03:50
Tagged date                              : UTC 2014-12-02 22:11:06
Writing application                      : HandBrake 0.9.9 2013051800

Video
ID                                       : 1
Format                                   : AVC
Format/Info                              : Advanced Video Codec
Format profile                           : Main@L4.0
Format settings, CABAC                   : Yes
Format settings, ReFrames                : 8 frames
Codec ID                                 : avc1
Codec ID/Info                            : Advanced Video Coding
Duration                                 : 53mn 56s
Bit rate                                 : 7 390 Kbps
Width                                    : 640 pixels
Height                                   : 480 pixels
Display aspect ratio                     : 4:3
Frame rate mode                          : Variable
Frame rate                               : 29.892 fps
Minimum frame rate                       : 9.279 fps
Maximum frame rate                       : 29.970 fps
Color space                              : YUV
Chroma subsampling                       : 4:2:0
Bit depth                                : 8 bits
Scan type                                : Progressive
Bits/(Pixel*Frame)                       : 0.805
Stream size                              : 2.78 GiB (98%)
Writing library                          : x264 core 130 r2273 b3065e6
Encoding settings                        : cabac=1 / ref=8 / deblock=1:0:0 / analyse=0x1:0x131 / me=umh / subme=9 / psy=1 / psy_rd=1.00:0.00 / mixed_ref=1 / me_range=16 / chroma_me=1 / trellis=2 / 8x8dct=0 / cqm=0 / deadzone=21,11 / fast_pskip=1 / chroma_qp_offset=-2 / threads=12 / lookahead_threads=1 / sliced_threads=0 / nr=0 / decimate=1 / interlaced=0 / bluray_compat=0 / constrained_intra=0 / bframes=3 / b_pyramid=2 / b_adapt=2 / b_bias=0 / direct=3 / weightb=1 / open_gop=0 / weightp=2 / keyint=300 / keyint_min=30 / scenecut=40 / intra_refresh=0 / rc_lookahead=60 / rc=crf / mbtree=1 / crf=13.0 / qcomp=0.60 / qpmin=0 / qpmax=69 / qpstep=4 / vbv_maxrate=20000 / vbv_bufsize=25000 / crf_max=0.0 / nal_hrd=none / ip_ratio=1.40 / aq=1:1.00
Encoded date                             : UTC 2014-12-02 21:03:50
Tagged date                              : UTC 2014-12-02 22:11:06
Color primaries                          : BT.601 NTSC
Transfer characteristics                 : BT.709
Matrix coefficients                      : BT.601

Audio
ID                                       : 2
Format                                   : AAC
Format/Info                              : Advanced Audio Codec
Format profile                           : LC
Codec ID                                 : 40
Duration                                 : 53mn 56s
Bit rate mode                            : Variable
Bit rate                                 : 138 Kbps
Maximum bit rate                         : 328 Kbps
Channel(s)                               : 2 channels
Channel positions                        : Front: L R
Sampling rate                            : 44.1 KHz
Compression mode                         : Lossy
Stream size                              : 53.4 MiB (2%)
Language                                 : English
Encoded date                             : UTC 2014-12-02 21:03:50
Tagged date                              : UTC 2014-12-02 22:11:06

Just to keep in mind from my previous post

Quote:
On the video i run AviSynth scripts on, which has audio sync problems, a certain scene is at - 11:08.

On the captured file and the Handbrake deinterlaced file that same scene is at - 11:20
Reply With Quote
  #23
12-10-2014, 04:44 AM
sanlyn sanlyn is offline
Premium Member

Join Date: Aug 2009
Location: N. Carolina and NY, USA
Posts: 3,648
Thanked 1,312 Times in 984 Posts
Your original capture used either variable frame rate or variable audio bitrate, or both. It's possible your original source was made that way. But in any case I didn't even think it was possible to capture at variable frame rate + variable audio bitrate. The handbrake version is 8 seconds longer in duration that the video that uses a constant frame rate. I don't even know how video gets created at variable frame rates without extra effort. o mEverything in the DV-AVi stnadrd states that DV audio spec is 48KHz, but you're still capturing at the obsolete 44KHz (unless internet posting is your main objective. It won't work for DVD/BluRay/AVCHD playback, it's just for "PC formats"). Also, if you started out with VHS tape or even DVD source (both of which are 29.976 fps interlaced), how did you end up with variable frame rate progressive video that is only 29.99 fps maximum? Are you deinterlacing and dropping alternate frames? In other words, I have no idea what you're doing. Going strictly by the numbers, you have two completely different videos. But if you insist on capturing to non-standard frame rates and audio rates, you should stick with handbrake.

Last edited by sanlyn; 12-10-2014 at 05:13 AM.
Reply With Quote
  #24
12-20-2014, 12:54 PM
pinheadlarry pinheadlarry is offline
Invalid Email / Banned / Spammer

Join Date: Jul 2014
Posts: 76
Thanked 0 Times in 0 Posts
it's not that i insist, it's that i have no idea what i'm doing.

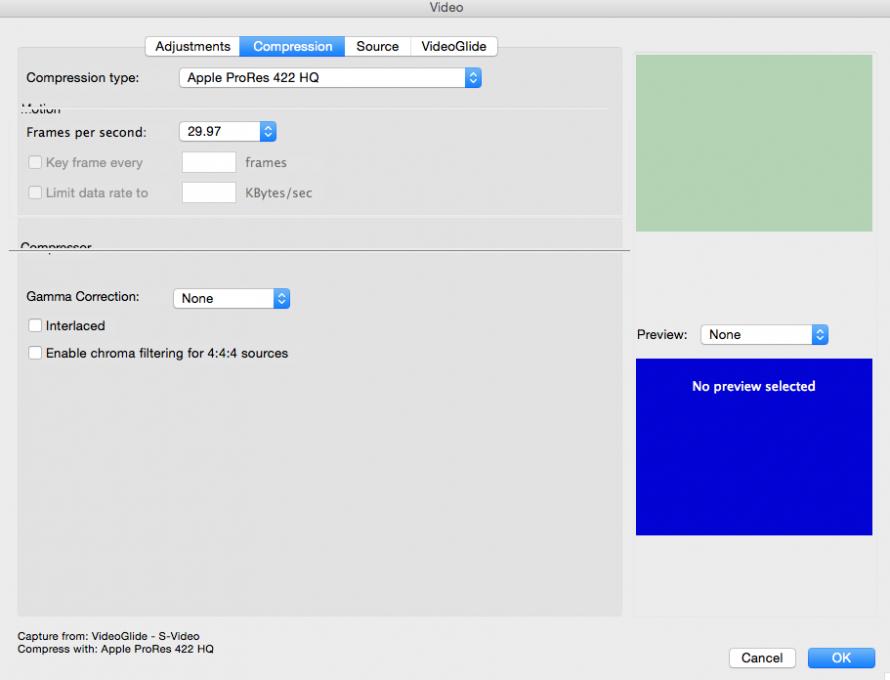

this is my record screen (not variable)

Reply With Quote
